Automatic antenna for BMW 7 Series E23 733i (1979)

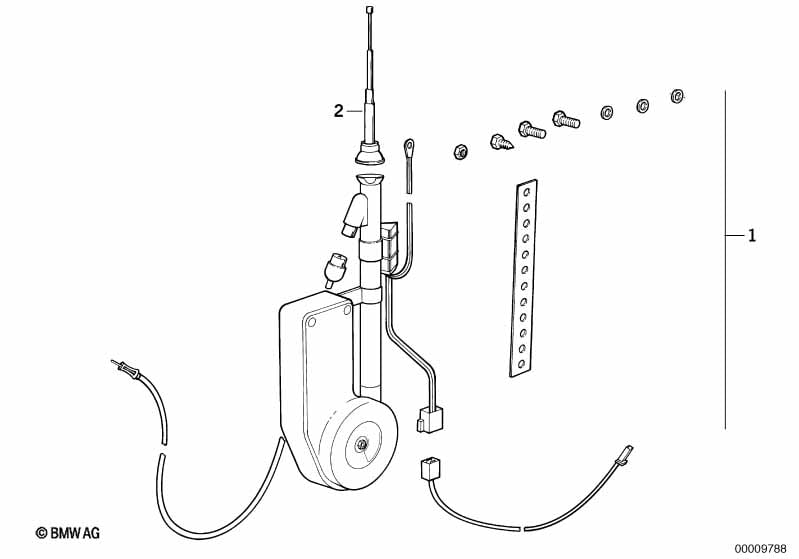

This Automatic antenna technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit kit automatic antenna chrome | 5900B | 1 | 82119416726 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit automatic antenna black | 5091SW | 1 | 82119416727 | ENDED | Shop at ECS Tuning | ||||
| 02 | Telescope chrom | 5900B | 1 | 82119416721 | $43.52 | ENDED | Shop at ECS Tuning | |||
| 02 | Telescope black | 5900B | 1 | 82119416729 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
