Cassetten radio for BMW 3 Series E30 M3 (1990)

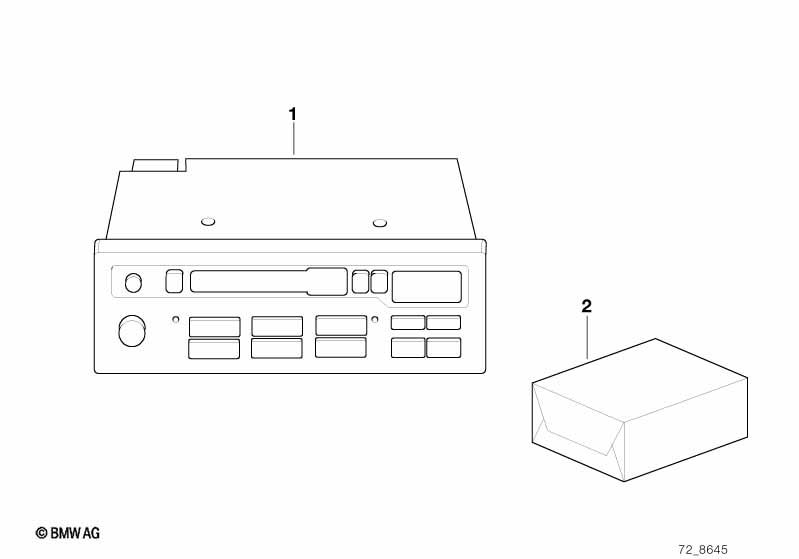

This Cassetten radio technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Radio Bavaria Mono Digital II | 1 | 65119061281 | ENDED | Shop at ECS Tuning | |||||
| 01 | Radio Bavaria Mono | 1 | 65119058621 | ENDED | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Mono system | X | 65111372579 | ENDED | Shop at ECS Tuning | |||||
| -- | Mono system | X | 65119058604 | ENDED | Shop at ECS Tuning | |||||
| 01 | Stereo system 4-channel | 1 | 09/1989 | 65129061915 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Sound System 1 | 1 | 09/1989 | 65129061916 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 02 | Stereo system 2-channel | 4-OHM | 1 | 09/1986 | 65129058605 | ENDED | Shop at ECS Tuning | |||
| 02 | Radio instal.kit bavaria electron/mexico | STEREO 8-OHM | 1 | 09/1986 | 65129058606 | ENDED | Shop at ECS Tuning | |||
| 02 | Radio install.kit bavaria C elec./excl. | STEREO 4-OHM | 1 | 09/1986 | 65129058663 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Germany |
L801A=No |
|||||||||
| 02 | Radio installation-supplementary set | 1 | 65119057456 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
