Cassette/radio with CD control for BMW 3 Series E30 318i (1991)

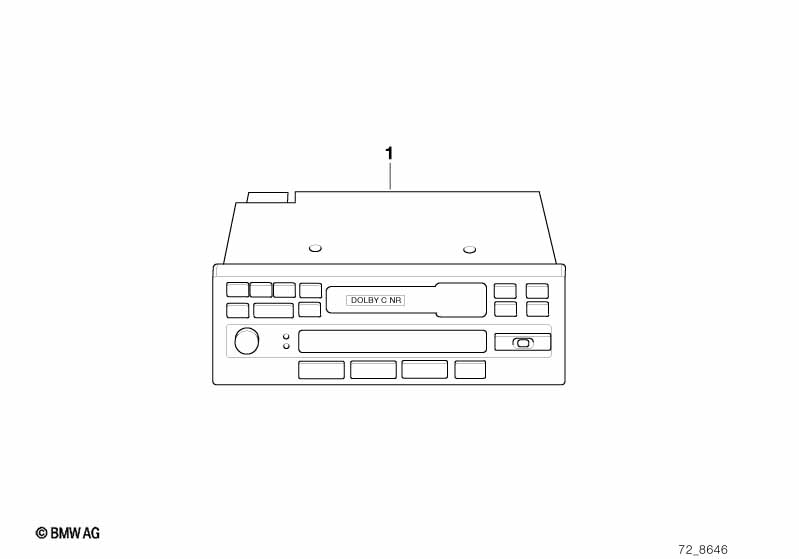

This Cassette/radio with CD control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Radio Bavaria C Business | 1 | 65129061880 | ENDED | Shop at ECS Tuning | |||||
| 01 | Stereo system 4-channel | 1 | 09/1989 | 65129061915 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
| 01 | Sound System 1 | 1 | 09/1989 | 65129061916 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318i Cassette/radio with CD control?
- This technical diagram illustrates the Cassette/radio with CD control within the Retrofitting / conversion / accessories group for the 3 Series E30 318i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Radio Bavaria C Business (Part #65129061880).
- Which models use the hardware listed in this Cassette/radio with CD control?
- The hardware and components featured in the Cassette/radio with CD control are specific to the 3 Series E30 318i produced during 1991. These technical specifications ensure that parts like the Radio Bavaria C Business (65129061880) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cassette/radio with CD control assembly?
- Each item in the Cassette/radio with CD control corresponds to the numbered list below the illustration. For the 3 Series E30 318i, you can identify the Radio Bavaria C Business by locating its position on the schematic, which then links to the official BMW part number 65129061880 for the Retrofitting / conversion / accessories section.
