Retrofit, auxiliary connection for BMW 3 Series E46 318i (2004)

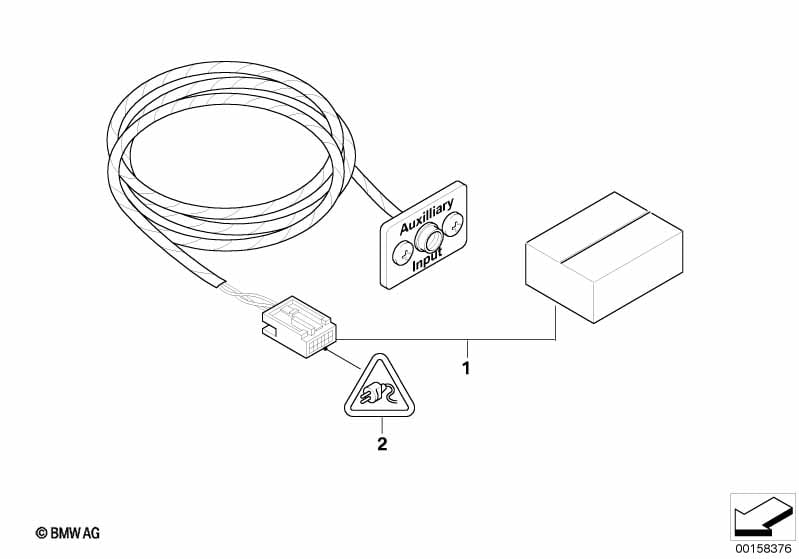

This Retrofit, auxiliary connection technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| For vehicles with CD player and Radio BMW Business (C43) |
S650A=Yes S661A=Yes |
|||||||||
| 01 | Retrofit kit, auxiliary connection | 1 | 09/2002 | 65120153501 | $79.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with TV function or On-board monitor with TV or Navigation system Professional |
S601A=Yes S602A=Yes S609A=Yes |
|||||||||
| 01 | Retrofit kit, auxiliary connection | 1 | 09/2002 | 65120153503 | $76.50 | Shop at ECS Tuning | ||||
| For vehicles with CD player and Radio BMW Business (C43) |
S650A=Yes S661A=Yes |
|||||||||
| 02 | Universal socket housing uncoded | 10 POL. | 1 | 09/2002 | 61136909008 | $1.82 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 3 | 09/2002 | 61131383776 | $0.28 | Shop at ECS Tuning | |||
| For vehicles with TV function or On-board monitor with TV or Navigation system Professional |
S601A=Yes S602A=Yes S609A=Yes |
|||||||||
| 02 | Universal socket housing uncoded | 10 POL. | 1 | 09/2002 | 61136909008 | $1.82 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0.2-0.35 MM²/SN | 3 | 09/2002 | 61131383776 | $0.28 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
