Conversion, Reverse to Professional CD for BMW 3 Series E46 330d (2004)

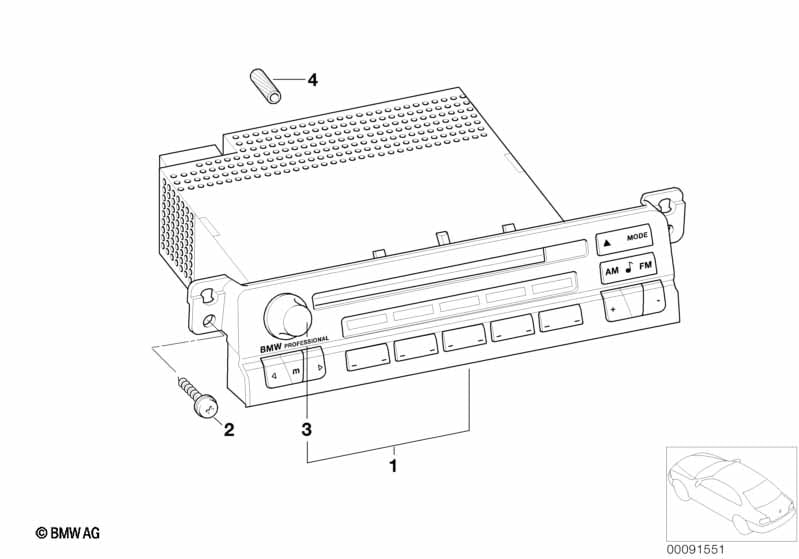

This Conversion, Reverse to Professional CD technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Radio | 1 | 03/2001 | 65126943453 | ENDED | Shop at ECS Tuning | ||||
| ONLY IN CONJUNCTION WITH RADIO OPERATING INSTRUCTIONS For retrofitting antenna-diversity see individual parts in EPC. |
||||||||||
| 02 | Fillister head self-tapping screw | ST4,2X19 ZN-SW | 2 | 03/2001 | 01/2007 | 07119901179 | $0.25 | ENDED | Shop at ECS Tuning | |
| 02 | Sheet metal screw | ST4,2X19-U2-C-H | 2 | 03/2001 | 07119904176 | $0.25 | Shop at ECS Tuning | |||
| 03 | Button | 1 | 03/2001 | 65126907814 | $11.92 | Shop at ECS Tuning | ||||
| 04 | Radio supporting pin | 1 | 03/2001 | 65128370535 | $0.94 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
