Remote control version 1 for BMW 3 Series E36 323i (1998)

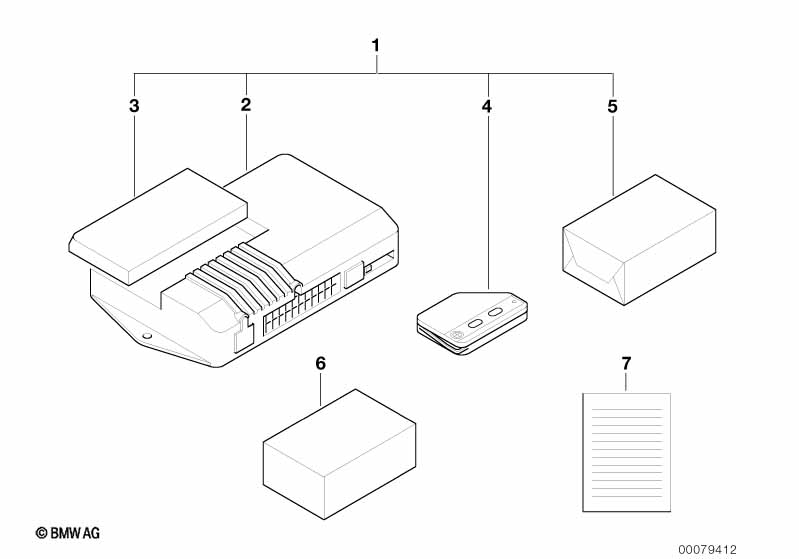

This Remote control version 1 technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Remote control | 1 | 82919404777 | Shop at ECS Tuning | ||||||
| For vehicles with National version Germany/Austria |
L801A=No |
|||||||||
| 02 | Control unit | 1 | 82929404804 | $138.38 | Shop at ECS Tuning | |||||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 03 | Remote control | 224MHZ,S.III | 1 | 82929404800 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Germany/Austria |
L801A=Yes |
|||||||||
| 03 | Remote control | SYSTEM II-III | 1 | 82929402530 | $137.27 | Shop at ECS Tuning | ||||
| For vehicles with National version Germany/Austria |
L801A=No |
|||||||||
| 03 | Remote control | SYSTEM II-III | 1 | 82929402875 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with National version Germany/Austria |
L801A=Yes |
|||||||||
| 04 | Remote control | DESIGN 3 | 1 | 82929404882 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Germany/Austria |
L801A=No |
|||||||||
| 04 | Remote control | DESIGN III | 1 | 82929404881 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Cable harness | 1 | 82929404807 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 323i Remote control version 1?
- This technical diagram illustrates the Remote control version 1 within the Retrofitting / conversion / accessories group for the 3 Series E36 323i produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Remote control (Part #82919404777).
- Which models use the hardware listed in this Remote control version 1?
- The hardware and components featured in the Remote control version 1 are specific to the 3 Series E36 323i produced during 1998. These technical specifications ensure that parts like the Remote control (82919404777) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remote control version 1 assembly?
- Each item in the Remote control version 1 corresponds to the numbered list below the illustration. For the 3 Series E36 323i, you can identify the Remote control by locating its position on the schematic, which then links to the official BMW part number 82919404777 for the Retrofitting / conversion / accessories section.
