Headlight cleaning system for BMW 3 Series E30 320i (1991)

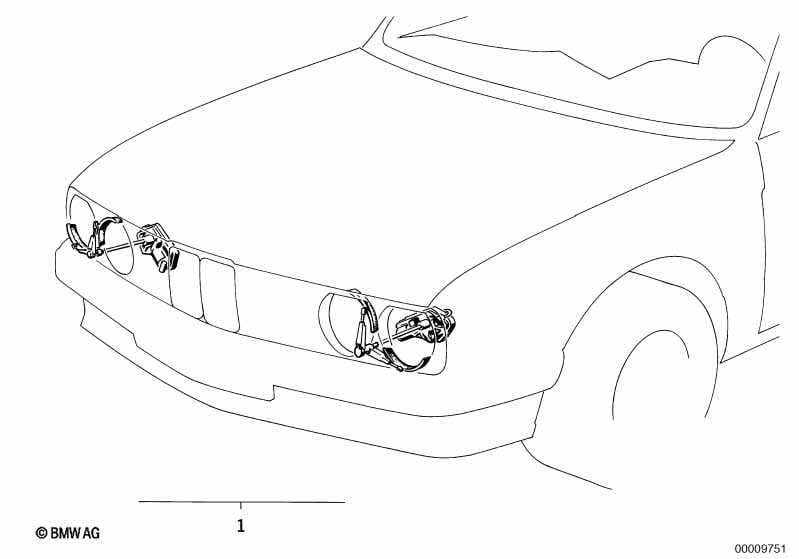

This Headlight cleaning system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Retrofit kit, headlight cleaning system | 1 | 09/1987 | 61671385274 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Glass holding frame low beam left | 1 | 09/1987 | 63121385593 | $40.73 | ENDED | Shop at ECS Tuning | |||
| -- | Glass holding frame low beam right | 1 | 09/1987 | 63121385594 | $40.73 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Headlight cleaning system?
- This technical diagram illustrates the Headlight cleaning system within the Retrofitting / conversion / accessories group for the 3 Series E30 320i produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, headlight cleaning system (Part #61671385274).
- Which models use the hardware listed in this Headlight cleaning system?
- The hardware and components featured in the Headlight cleaning system are specific to the 3 Series E30 320i produced during 1991. These technical specifications ensure that parts like the Retrofit kit, headlight cleaning system (61671385274) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight cleaning system assembly?
- Each item in the Headlight cleaning system corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Retrofit kit, headlight cleaning system by locating its position on the schematic, which then links to the official BMW part number 61671385274 for the Retrofitting / conversion / accessories section.
