Heated spray nozzle for BMW 3 Series E30 320i (1992)

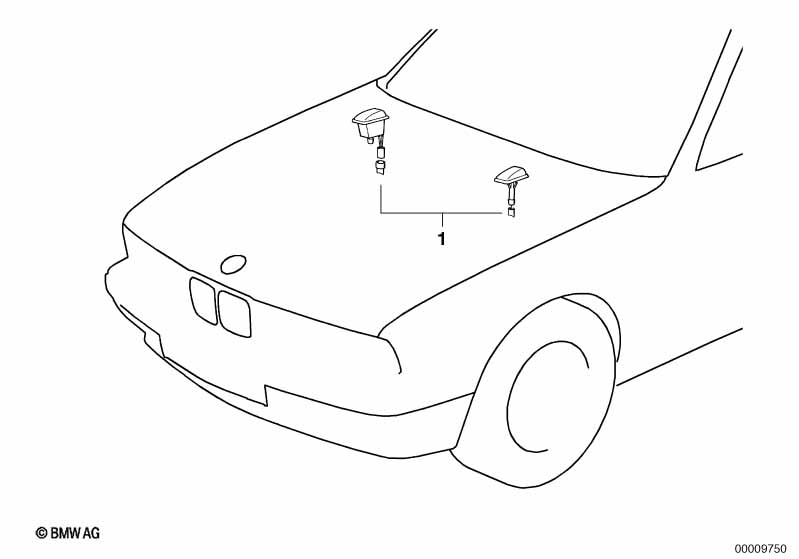

This Heated spray nozzle technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Set heated spraying nozzle | 1 | 09/1986 | 61669059007 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Heated spray nozzle?
- This technical diagram illustrates the Heated spray nozzle within the Retrofitting / conversion / accessories group for the 3 Series E30 320i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Set heated spraying nozzle (Part #61669059007).
- Which models use the hardware listed in this Heated spray nozzle?
- The hardware and components featured in the Heated spray nozzle are specific to the 3 Series E30 320i produced during 1992. These technical specifications ensure that parts like the Set heated spraying nozzle (61669059007) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Heated spray nozzle assembly?
- Each item in the Heated spray nozzle corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Set heated spraying nozzle by locating its position on the schematic, which then links to the official BMW part number 61669059007 for the Retrofitting / conversion / accessories section.
