Headrest, rear for BMW 5 Series E34 525i (1990)

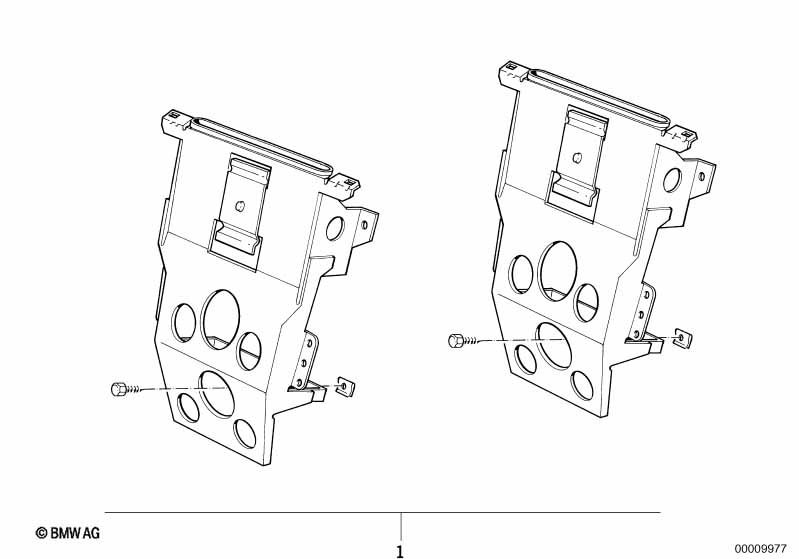

This Headrest, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set mounting parts headrest rear | 1 | 52209061487 | $59.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 525i Headrest, rear?
- This technical diagram illustrates the Headrest, rear within the Retrofitting / conversion / accessories group for the 5 Series E34 525i produced during 1990. It provides a detailed exploded view of the components, identifying key parts such as the Set mounting parts headrest rear (Part #52209061487).
- Which models use the hardware listed in this Headrest, rear?
- The hardware and components featured in the Headrest, rear are specific to the 5 Series E34 525i produced during 1990. These technical specifications ensure that parts like the Set mounting parts headrest rear (52209061487) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headrest, rear assembly?
- Each item in the Headrest, rear corresponds to the numbered list below the illustration. For the 5 Series E34 525i, you can identify the Set mounting parts headrest rear by locating its position on the schematic, which then links to the official BMW part number 52209061487 for the Retrofitting / conversion / accessories section.
