Leather retrofit basic seat front for BMW 3 Series E90 330i (2007)

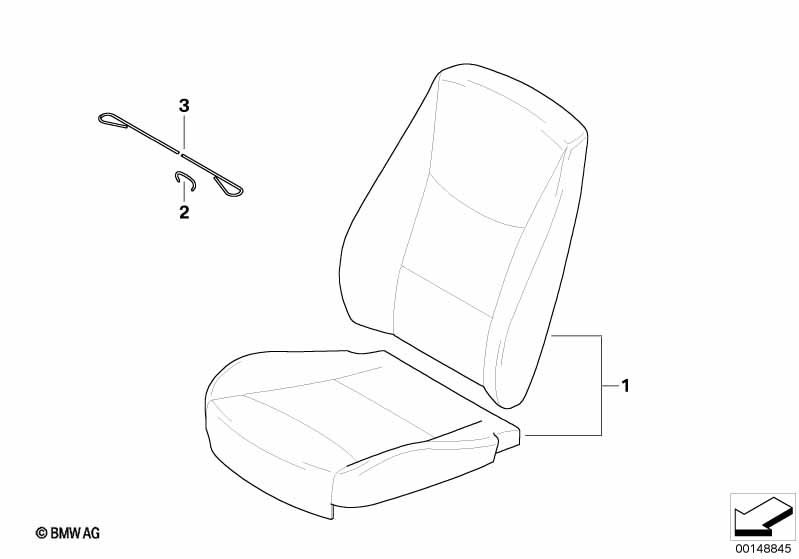

This Leather retrofit basic seat front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | +++++ Delivery time up to 6 weeks +++++ not for vehicles with heated seats manufactured after breakpoint 09/05 +++++ For vehicles with Sports seat |
S481A=No |
||||||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 01 | Retrofit kit front leather upholstery | SCHWARZ | 1 | 52300408155 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | GRAU | 1 | 52300408159 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | BEIGE | 1 | 52300408166 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | LEMON | 1 | 52300408173 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | TERRA | 1 | 52300408180 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System |
S470A=No |
|||||||||
| 01 | Retrofit kit front leather upholstery | SCHWARZ | 1 | 52300399643 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | GRAU | 1 | 52300408157 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | BEIGE | 1 | 52300408164 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | LEMON | 1 | 52300408171 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | TERRA | 1 | 52300408178 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 03 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 330i Leather retrofit basic seat front?
- This technical diagram illustrates the Leather retrofit basic seat front within the Retrofitting / conversion / accessories group for the 3 Series E90 330i produced during 2007. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit front leather upholstery (Part #52300408155).
- Which models use the hardware listed in this Leather retrofit basic seat front?
- The hardware and components featured in the Leather retrofit basic seat front are specific to the 3 Series E90 330i produced during 2007. These technical specifications ensure that parts like the Retrofit kit front leather upholstery (52300408155) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Leather retrofit basic seat front assembly?
- Each item in the Leather retrofit basic seat front corresponds to the numbered list below the illustration. For the 3 Series E90 330i, you can identify the Retrofit kit front leather upholstery by locating its position on the schematic, which then links to the official BMW part number 52300408155 for the Retrofitting / conversion / accessories section.
