Leather retrofit sport seat front for BMW 3 Series E91 335d (2008)

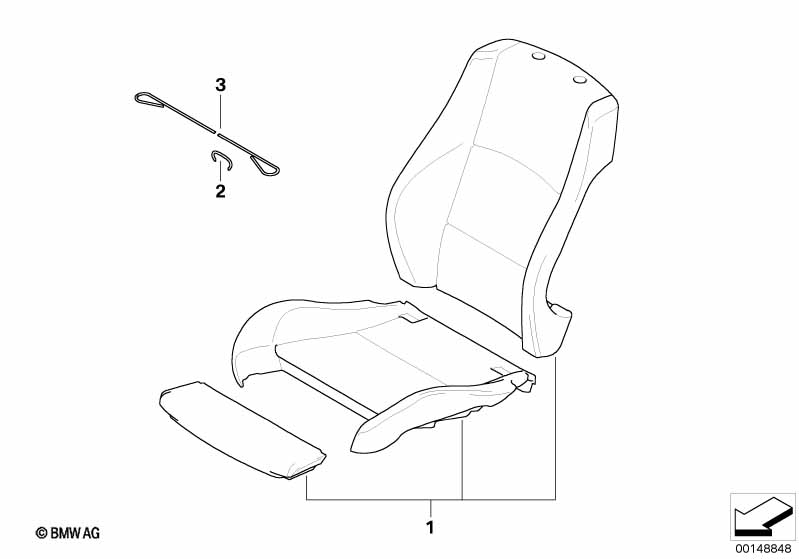

This Leather retrofit sport seat front technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 335d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | +++++ Delivery time up to 6 weeks +++++ not for vehicles with heated seats manufactured after breakpoint 09/05 +++++ For vehicles with Sports seat |
S481A=Yes |
||||||||
| For vehicles with Isofix-System |
S470A=No |
|||||||||
| 01 | Retrofit kit front leather upholstery | SCHWARZ | 1 | 52300399651 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | GRAU | 1 | 52300408158 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | BEIGE | 1 | 52300408165 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | LEMON | 1 | 52300408172 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | TERRA | 1 | 52300408179 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Isofix-System |
S470A=Yes |
|||||||||
| 01 | Retrofit kit front leather upholstery | SCHWARZ | 1 | 52300408156 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | GRAU | 1 | 52300408160 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | BEIGE | 1 | 52300408167 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | LEMON | 1 | 52300408174 | ENDED | Shop at ECS Tuning | ||||
| 01 | Retrofit kit front leather upholstery | TERRA | 1 | 52300408181 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamp | 1,6X20X10,1 | X | 52101945543 | $0.09 | Shop at ECS Tuning | ||||
| 02 | Wire-strap | L=1800MM | X | 52208129296 | $1.14 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
