Front seat heating retrofit for BMW 3 Series E90 LCI 320i (2011)

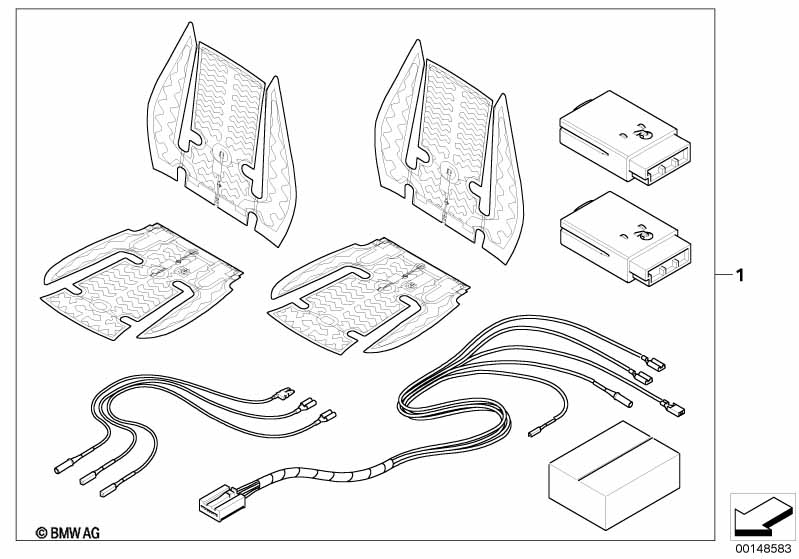

This Front seat heating retrofit technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | not suitable for leather equipment Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. For vehicles with Sports seat |
S481A=No |
||||||||
| Switching centre (centre console) to be ordered separately! For part number see electronic parts catalogue (EPC). |
||||||||||
| 01 | Installing set heated seat front | 1 | 09/2009 | 61110428194 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Automatic air conditioning Order control panel for automatic climate control separately! See EPC for part number. |
S534A=Yes |
|||||||||
| 01 | Installing set heated seat front | 1 | 09/2009 | 61110428194 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i Front seat heating retrofit?
- This technical diagram illustrates the Front seat heating retrofit within the Retrofitting / conversion / accessories group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Installing set heated seat front (Part #61110428194).
- Which models use the hardware listed in this Front seat heating retrofit?
- The hardware and components featured in the Front seat heating retrofit are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Installing set heated seat front (61110428194) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front seat heating retrofit assembly?
- Each item in the Front seat heating retrofit corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Installing set heated seat front by locating its position on the schematic, which then links to the official BMW part number 61110428194 for the Retrofitting / conversion / accessories section.
