Installing set heated seat front for BMW 7 Series E32 730iL (1994)

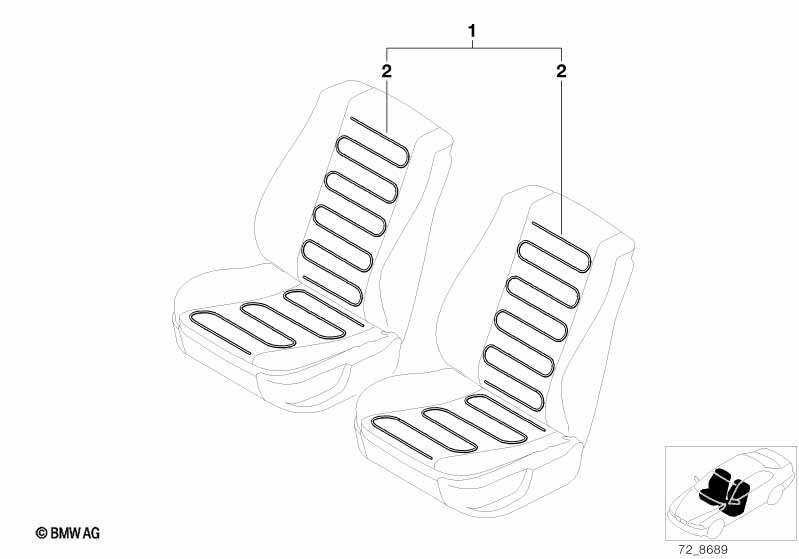

This Installing set heated seat front technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with BMW Sport seat, electrically adjustable and Cloth version |
=Yes =Yes |
|||||||||
| 01 | Inst.kit for seat heating on both sides | 1 | 64119059326 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with Leather trim and Standard seat mechanically adjustable |
=Yes =Yes |
|||||||||
| 01 | Inst.kit for seat heating on both sides | 1 | 09/1990 | 52119410634 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with BMW Sport seat, electrically adjustable and Leather trim |
=Yes =Yes |
|||||||||
| 01 | Inst.kit for seat heating on both sides | 1 | 64119059327 | $650.07 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Standard seat mechanically adjustable and Cloth version |
=Yes =Yes |
|||||||||
| 01 | Inst.kit for seat heating on both sides | 1 | 64119059324 | $733.77 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Standard seat, electrically adjustable and Leather trim |
=Yes =Yes |
|||||||||
| 01 | Inst.kit for seat heating on both sides | 1 | 09/1990 | 52119410635 | $143.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Standard seat, electrically adjustable and Cloth version |
=Yes =Yes |
|||||||||
| 01 | Inst.kit for seat heating on both sides | 1 | 64119059325 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 730iL Installing set heated seat front?
- This technical diagram illustrates the Installing set heated seat front within the Retrofitting / conversion / accessories group for the 7 Series E32 730iL produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Inst.kit for seat heating on both sides (Part #64119059326).
- Which models use the hardware listed in this Installing set heated seat front?
- The hardware and components featured in the Installing set heated seat front are specific to the 7 Series E32 730iL produced during 1994. These technical specifications ensure that parts like the Inst.kit for seat heating on both sides (64119059326) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Installing set heated seat front assembly?
- Each item in the Installing set heated seat front corresponds to the numbered list below the illustration. For the 7 Series E32 730iL, you can identify the Inst.kit for seat heating on both sides by locating its position on the schematic, which then links to the official BMW part number 64119059326 for the Retrofitting / conversion / accessories section.
