Retrofit, ski bag for BMW 3 Series E93 LCI 325d (2013)

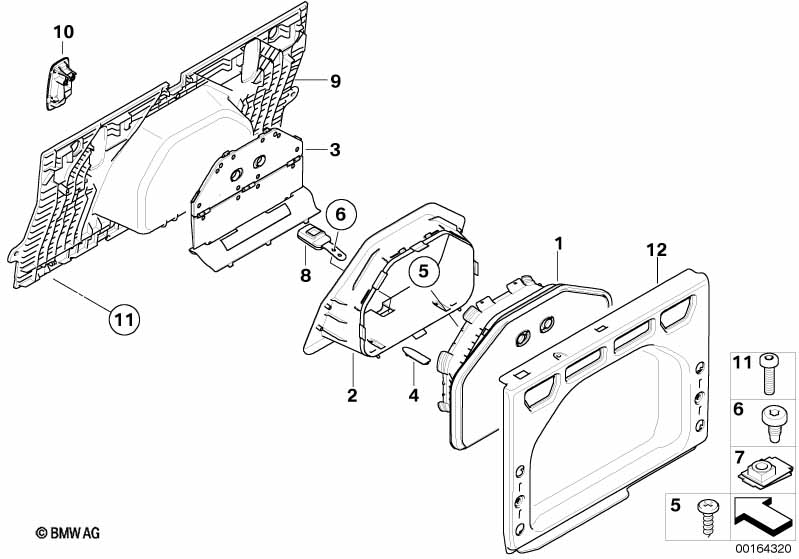

This Retrofit, ski bag technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 325d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ski bag cassette | 1 | 52206973024 | $374.10 | Shop at ECS Tuning | |||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige |
KAGE=Yes LCGE=Yes |
|||||||||
| 02 | Ski bag cover | CREAMBEIGE | 1 | 52209110007 | $56.33 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Ski bag cover | GRAU | 1 | 52209110006 | $56.33 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Sensatec/cream-beige or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather "Dakota"/creambeige or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel |
ANAT=Yes AWAD=Yes AWAT=Yes KAGE=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD3=Yes LCGE=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes |
|||||||||
| 02 | Ski bag cover | SCHWARZ | 1 | 52209110005 | $56.33 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige |
KAGE=Yes LCGE=Yes |
|||||||||
| 03 | Flap ski bag | CREAMBEIGE | 1 | 52209110010 | $87.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 03 | Flap ski bag | GRAU | 1 | 52209110009 | $87.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Sensatec/cream-beige or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather "Dakota"/creambeige or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel |
ANAT=Yes AWAD=Yes AWAT=Yes KAGE=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD3=Yes LCGE=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes |
|||||||||
| 03 | Flap ski bag | SCHWARZ | 1 | 52209110008 | $87.85 | Shop at ECS Tuning | ||||
| For vehicles with Sensatec/cream-beige or Leather "Dakota"/creambeige |
KAGE=Yes LCGE=Yes |
|||||||||
| 04 | Cover for screw on ski sack | CREAMBEIGE | 1 | 52206987762 | $1.27 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 04 | Cover for screw on ski sack | GRAU | 1 | 52206987761 | $1.27 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric "Diagonal/gray" or Fabric "Diagonal/anthracite" or Sensatec/cream-beige or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota"/korall-red or Leather "Dakota" saddle brown or Leather "Dakota"/creambeige or Leather Dakota/perl-grau/contrast blue or Leather Dakota/black/contrast blue or Leather Dakota/black/contrast white or Leather "Dakota"/schwarz or Leather Walknappa/"cream-beige/black" or Leather, felted nappa/camel |
ANAT=Yes AWAD=Yes AWAT=Yes KAGE=Yes KASW=Yes LCAD=Yes LCCX=Yes LCD1=Yes LCD3=Yes LCGE=Yes LCNH=Yes LCNL=Yes LCNM=Yes LCSW=Yes LRCC=Yes LRD4=Yes |
|||||||||
| 04 | Cover for screw on ski sack | SCHWARZ | 1 | 52206987760 | $1.27 | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | 6,3X16 | 2 | 07119904314 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Torx-bolt with washer | ISA M6X17 | 4 | 07147139404 | $0.80 | Shop at ECS Tuning | ||||
| 08 | Belt buckle | 1 | 72116977782 | $12.93 | Shop at ECS Tuning | |||||
| When this safety component is being sold, for legal reasons the product information (see: Parts information -> Su pplement) must be printed out and given to the cu stomer. |
||||||||||
| For vehicles with Load-through hatch with int. trans. sack and Storage compartment package |
S4UTA=Yes S493A=Yes |
|||||||||
| 09 | Trim for inside bulkhead tray | ANTHRAZIT | 1 | 51476971568 | $205.08 | Shop at ECS Tuning | ||||
| 09 | Trim for inside bulkhead tray | GRAU | 1 | 51476971569 | $205.08 | Shop at ECS Tuning | ||||
| 09 | Trim for inside bulkhead tray | CREAMBEIGE | 1 | 51476971570 | $205.08 | Shop at ECS Tuning | ||||
| 10 | Hook | ANTHRAZIT | 2 | 51479121819 | $15.60 | Shop at ECS Tuning | ||||
| 10 | Hook | GRAU | 2 | 51479121820 | $15.60 | Shop at ECS Tuning | ||||
| 10 | Hook | CREAMBEIGE | 2 | 51479155238 | $15.60 | Shop at ECS Tuning | ||||
| 11 | Fillister head screw | 4 | 07149129258 | $0.80 | Shop at ECS Tuning | |||||
| For vehicles with Load-through hatch with int. trans. sack |
S4UTA=Yes |
|||||||||
| 12 | Trim panel, bulkhead | 1 | 51477157296 | $100.33 | +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
