Retrofit, net bag at seat backrest for BMW 3 Series E90 318d (2007)

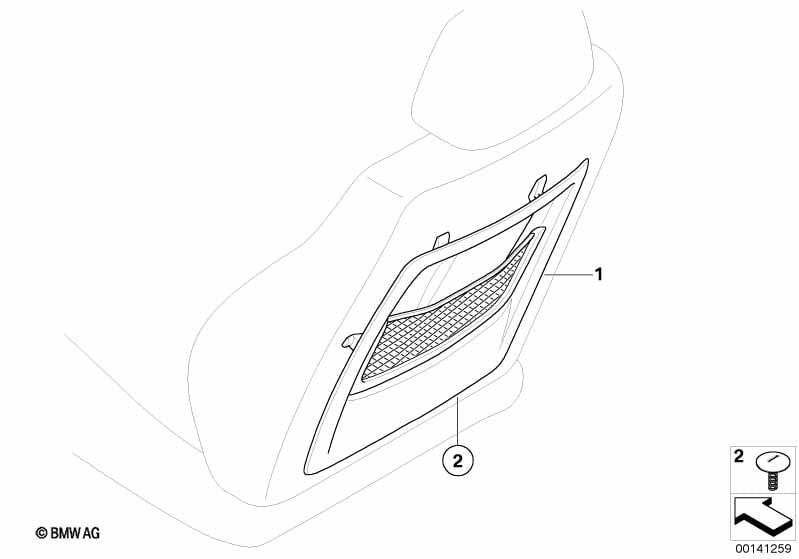

This Retrofit, net bag at seat backrest technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Cloth/leather citrus/quarz-blue or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes FFB6=Yes LCAD=Yes |
|||||||||
| 01 | Rear panel with net bag | GRAU60 | 2 | 52109166909 | $111.24 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "Impuls/anthrazit" or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FMAT=Yes KASW=Yes LCAD=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Rear panel with net bag | BEIGE | 2 | 52109166910 | $111.24 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Rear panel with net bag | SCHWARZ | 2 | 52109166908 | $111.24 | Shop at ECS Tuning | ||||
| 02 | Clip, black | 2 | 52201964201 | $0.38 | Shop at ECS Tuning | |||||
