Retrofit, ski bag for BMW 6 Series E64 645Ci (2005)

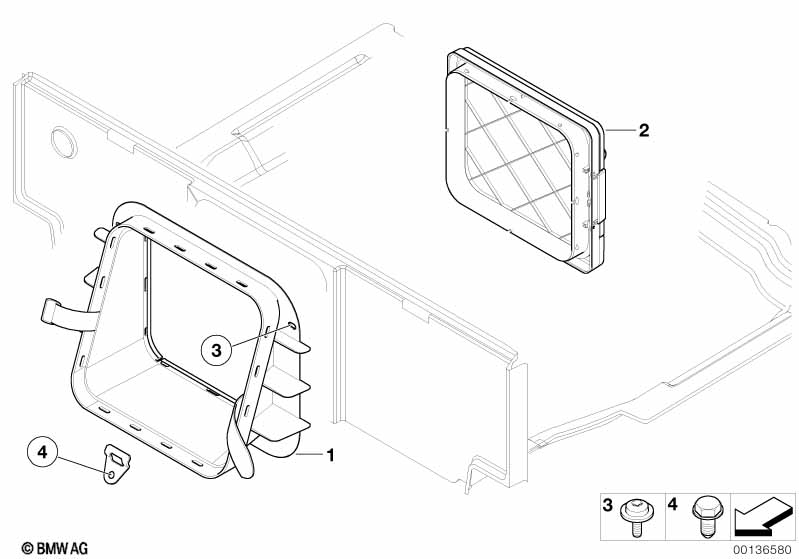

This Retrofit, ski bag technical drawing provides a detailed breakdown of the assembly for the 6 Series E64 645Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ski bag | 1 | 52207058424 | $374.10 | +core | Shop at ECS Tuning | ||||
| 02 | Cover, ski bag | 1 | 72608268953 | $56.22 | Shop at ECS Tuning | |||||
| 03 | Torx-bolt with washer | M6X14 | 4 | 07149156085 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Hex bolt with washer | M8X16-Z1 | 1 | 07119900268 | $0.53 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E64 645Ci Retrofit, ski bag?
- This technical diagram illustrates the Retrofit, ski bag within the Retrofitting / conversion / accessories group for the 6 Series E64 645Ci produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Ski bag (Part #52207058424).
- Which models use the hardware listed in this Retrofit, ski bag?
- The hardware and components featured in the Retrofit, ski bag are specific to the 6 Series E64 645Ci produced during 2005. These technical specifications ensure that parts like the Ski bag (52207058424) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Retrofit, ski bag assembly?
- Each item in the Retrofit, ski bag corresponds to the numbered list below the illustration. For the 6 Series E64 645Ci, you can identify the Ski bag by locating its position on the schematic, which then links to the official BMW part number 52207058424 for the Retrofitting / conversion / accessories section.
