Retrofit, multifunctional armrest rear for BMW 3 Series E46 330d (2003)

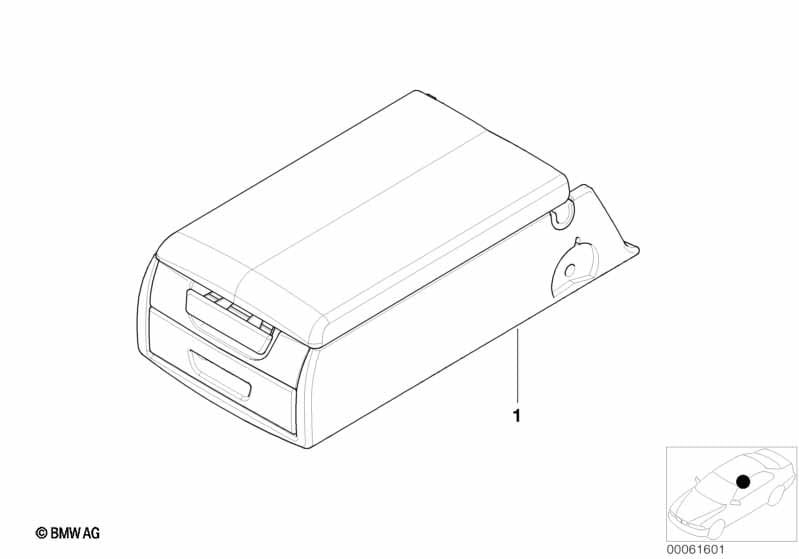

This Retrofit, multifunctional armrest rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For this retrofit there are no installation instructions. To be installed by skilled personnel only, best by a BMW partner. BMW is unable to accept any responsibility for operating failures and damages resulting from incorrect installation. Installation time approx. 0.25 hours, which may differ depending on the condition of the vehicle and the equipment in it. |
|||||||||
| For vehicles with Fabric, flat Geomix |
E5=Yes |
|||||||||
| 01 | Armrest cloth | LAVENDEL | 1 | 52208257752 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, mosaic/walknappa |
Q9=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208270096 | $633.00 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208270097 | $513.36 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest leather | LIGHTGELB | 1 | 52208270098 | $513.36 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Flat textile, linen |
E4=Yes |
|||||||||
| 01 | Armrest leather | ANTHRAZIT | 1 | 52208257749 | $407.34 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather | TIEFGRÜN | 1 | 52208257750 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Laser" |
G7=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52207890273 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth flock "Raute" |
E3=Yes |
|||||||||
| 01 | Armrest cloth | ANTHRAZIT | 1 | 52208257744 | $392.61 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest cloth | MINTGRÜN | 1 | 52208257745 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest cloth | MARINEBLAU | 1 | 52208257746 | $407.34 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest cloth | GRAU | 1 | 52208257747 | $407.34 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "Maglia" or Leather Mont./basic equipm. |
E9=Yes N6=Yes |
|||||||||
| 01 | Armrest leather | SCHWARZ | 1 | 52208257756 | $527.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Armrest leather | HELLBEIGE | 1 | 52208257757 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest leather | TANINROT | 1 | 52208257758 | $563.58 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Armrest leather | GRAU | 1 | 52208257759 | $543.93 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
