MINI Click & Drive System for BMW MINI Clubman F54 One (2019)

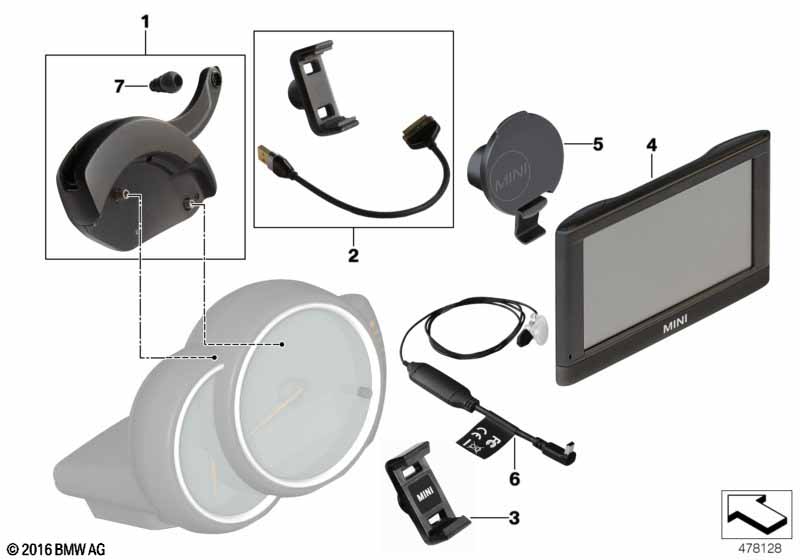

This MINI Click & Drive System technical drawing provides a detailed breakdown of the assembly for the MINI Clubman F54 One. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Multifunctional instrument display |
S6WBA=No |
|||||||||
| 01 | MINI Click & Drive System | BASISTRÄGER | 1 | 07/2017 | 65902471026 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Fuse Mini, yellow-brown | 5A | 1 | 07/2017 | 61136917401 | $0.77 | Shop at ECS Tuning | |||
| -- | Socket contact MCP 2.8 | 0,2-0,35MM² AG | 1 | 07/2017 | 61139232673 | ENDED | Shop at ECS Tuning | |||
| 03 | MINI Click & Drive clip | UNIVERSAL | 1 | 65902406942 | Shop at ECS Tuning | |||||
| For vehicles with MINI navigation system |
S6UMA=No |
|||||||||
| 04 | GPS, portable | XL | 1 | 65902348017 | ENDED | Shop at ECS Tuning | ||||
| Includes digital road map for Western/Eastern Europe. |
||||||||||
| For vehicles with MINI navigation system Suitable for Pos. 1 |
S6UMA=No |
|||||||||
| 05 | Installation kit | LHD | 1 | 65902348476 | ENDED | Shop at ECS Tuning | ||||
| 05 | Installation kit | RHD | 1 | 65902348477 | ENDED | Shop at ECS Tuning | ||||
| 07 | Ball mounting | CLICK&DRIVE | 1 | 65902447306 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
