Additional kit B+ for BMW 3 Series E36 318i (1999)

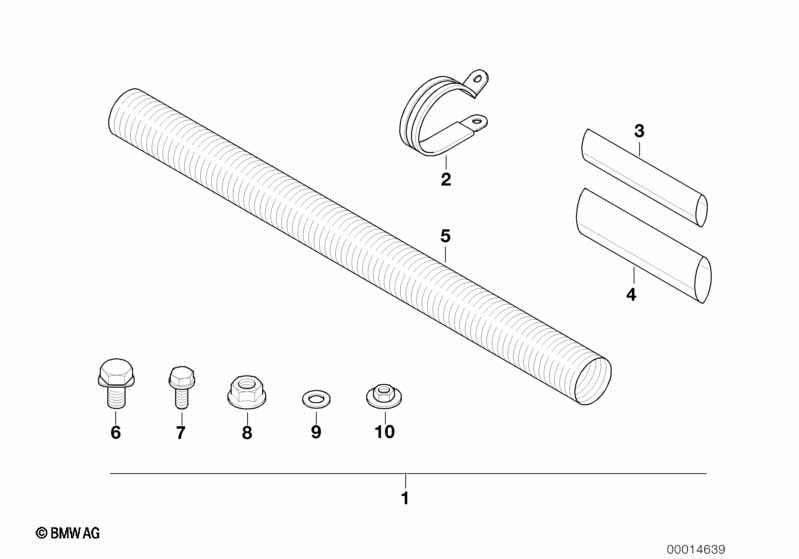

This Additional kit B+ technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Additional kit (jump start support) | E36 CABRIO | 1 | 10/1997 | 64509410703 | ENDED | Shop at ECS Tuning | |||
| 02 | Pipe clamp | 1 | 64121365674 | $7.03 | ENDED | Shop at ECS Tuning | ||||
| 03 | Shrinking hose | 16 MM | 1 | 64509407989 | ENDED | Shop at ECS Tuning | ||||
| 04 | Shrinking hose | 25,4 MM | 1 | 64509407990 | ENDED | Shop at ECS Tuning | ||||
| 05 | Flexible tube, length 500 | WEBASTO 30742 A | 1 | 64509407991 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt with washer | M8X12-Z3-1 | 1 | 07119913011 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X12-Z1 | 1 | 07119915017 | $0.36 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt with washer | M6X12-U1-8.8 | 1 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Collar nut | M8 | 1 | 07119927022 | $0.20 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | 6,4 | 1 | 07119931087 | $0.92 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | BM6-8-ZNFE SW | 2 | 07129905470 | $0.29 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
