Battery charger for BMW 3 Series E30 320i (1991)

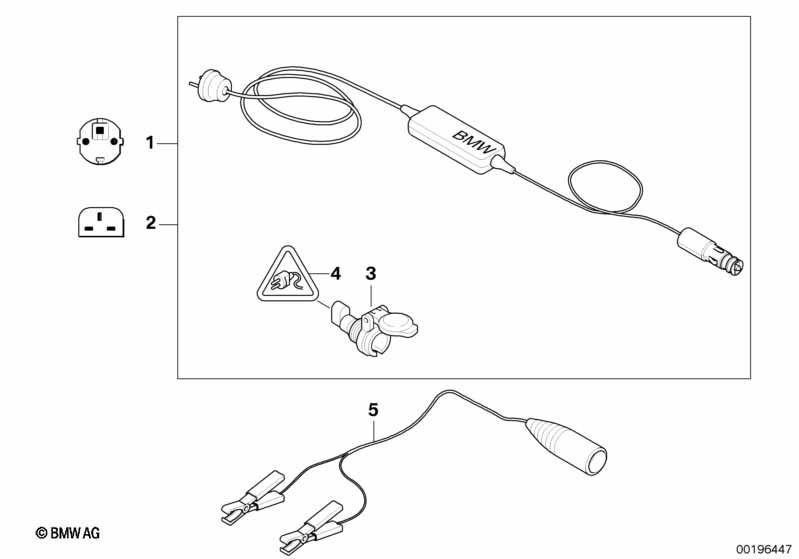

This Battery charger technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Battery charger 3.6 amp | EU CEE7/17 230V | 1 | 02/1994 | 61432153788 | ENDED | Shop at ECS Tuning | |||
| 01 | Battery charger, 5.0 amp | ECE | 1 | 02/1994 | 61432334068 | ENDED | Shop at ECS Tuning | |||
| 01 | Battery charger | ECE | 1 | 61432408592 | Shop at ECS Tuning | |||||
| 02 | Battery charger 3.6 amp | UK 230 V | 1 | 02/1994 | 61432154949 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Battery charger, 5.0 amp | UK | 1 | 02/1994 | 61432334070 | ENDED | Shop at ECS Tuning | |||
| 02 | Battery charger | UK | 1 | 61432408593 | Shop at ECS Tuning | |||||
| 03 | Plug-in socket | 1 | 61132155164 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Socket housing, black | 2 POL. | 1 | 61131378108 | $1.52 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 | 1,0-2,5MM² | 1 | 61131376204 | $0.98 | Shop at ECS Tuning | ||||
| 05 | Adapter lead battery charger | 1 | 02/1994 | 71607690235 | $33.75 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Adapter lead battery charger | 1 | 77028540818 | ENDED | Shop at ECS Tuning | |||||
