On-board computer for BMW 7 Series E38 730i (1996)

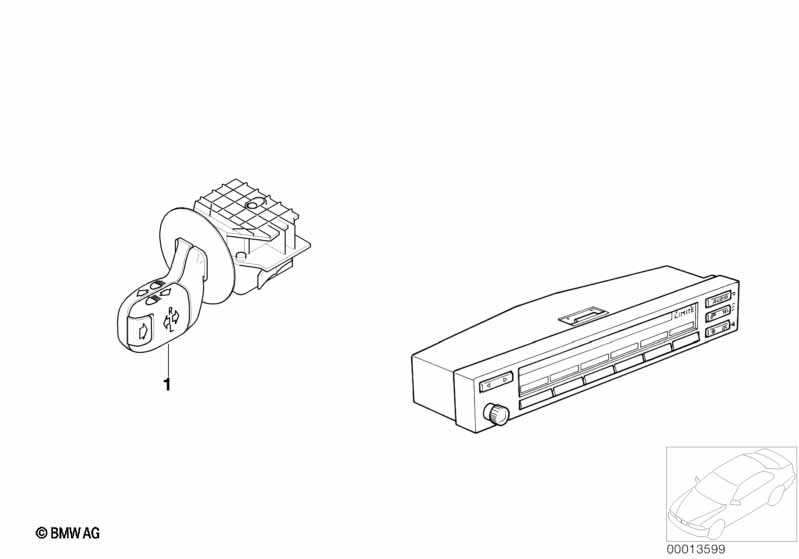

This On-board computer technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The system requires encoding Important notice: The installation instructions are not included in the retrofit kit. Print out the latest update of the instructions from the Aftersales Assistance Portal (ASAP) and hand them over to the customer. |
|||||||||
| 01 | Switch turn signal,dip-dim control | 1 | 61318352172 | $137.88 | Shop at ECS Tuning | |||||
| only in conjunction with MID operating unit |
||||||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 730i On-board computer?
- This technical diagram illustrates the On-board computer within the Retrofitting / conversion / accessories group for the 7 Series E38 730i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Switch turn signal,dip-dim control (Part #61318352172).
- Which models use the hardware listed in this On-board computer?
- The hardware and components featured in the On-board computer are specific to the 7 Series E38 730i produced during 1996. These technical specifications ensure that parts like the Switch turn signal,dip-dim control (61318352172) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the On-board computer assembly?
- Each item in the On-board computer corresponds to the numbered list below the illustration. For the 7 Series E38 730i, you can identify the Switch turn signal,dip-dim control by locating its position on the schematic, which then links to the official BMW part number 61318352172 for the Retrofitting / conversion / accessories section.
