Install.kit, telephone roof antenna for BMW 5 Series E39 525d (2003)

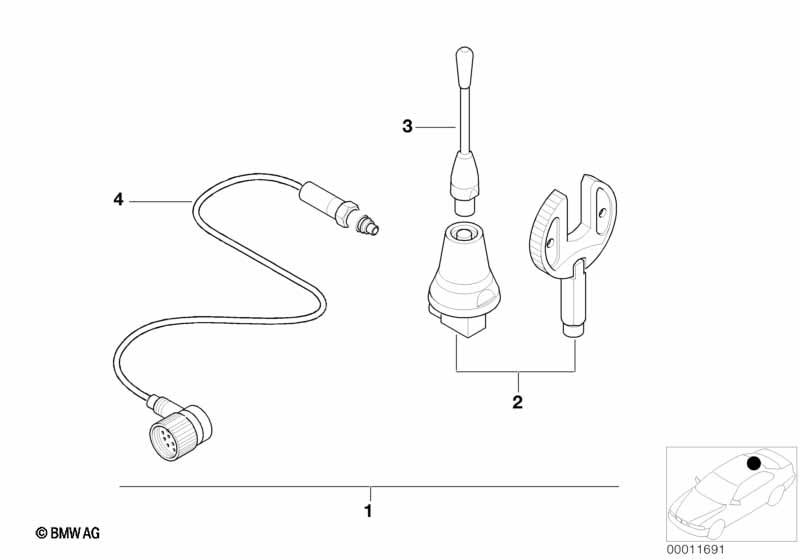

This Install.kit, telephone roof antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 525d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2003.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set roof antenna | DUALBAND | 1 | 84530029406 | $44.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Telephone roof antenna base | D-NETZ | 1 | 84538371805 | $82.36 | +core | Shop at ECS Tuning | |||
| 03 | Antenna radiator, singleband | NETZ GSM | 1 | 84538376331 | $22.08 | Shop at ECS Tuning | ||||
| 04 | Antenna cable | D-NETZ 2250MM | 1 | 61128375500 | $36.85 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 525d Install.kit, telephone roof antenna?
- This technical diagram illustrates the Install.kit, telephone roof antenna within the Retrofitting / conversion / accessories group for the 5 Series E39 525d produced during 2003. It provides a detailed exploded view of the components, identifying key parts such as the Installing set roof antenna (Part #84530029406).
- Which models use the hardware listed in this Install.kit, telephone roof antenna?
- The hardware and components featured in the Install.kit, telephone roof antenna are specific to the 5 Series E39 525d produced during 2003. These technical specifications ensure that parts like the Installing set roof antenna (84530029406) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Install.kit, telephone roof antenna assembly?
- Each item in the Install.kit, telephone roof antenna corresponds to the numbered list below the illustration. For the 5 Series E39 525d, you can identify the Installing set roof antenna by locating its position on the schematic, which then links to the official BMW part number 84530029406 for the Retrofitting / conversion / accessories section.
