Side wall aerial retrofit kit for BMW 3 Series E36 318ti (1998)

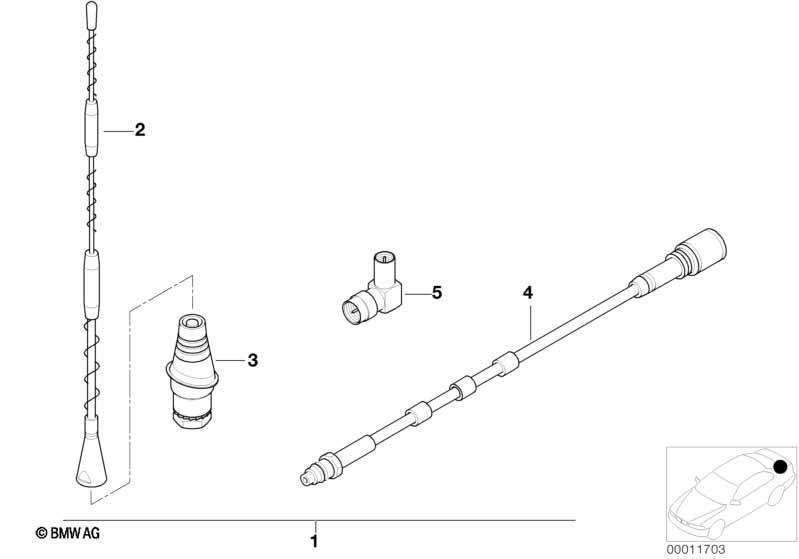

This Side wall aerial retrofit kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, rear antenna | D-NETZ | 1 | 09/1995 | 84519405545 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with Radio unbreakable antenna |
||||||||||
| 01 | Retrofit kit, rear antenna | D-NETZ | 1 | 09/1995 | 84519405545 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Antenna diplexer | 1 | 09/1995 | 84518361020 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Antenna radiator | D-NETZ 480MM | 1 | 84518372086 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Antenna base | D-NETZ | 1 | 84518372087 | Shop at ECS Tuning | |||||
| 04 | Antenna cable | 930MM | 1 | 09/1995 | 84549405561 | ENDED | Shop at ECS Tuning | |||
| 05 | Adapter | MINIUHF/SAP | 1 | 08/2000 | 84549405324 | $15.25 | ENDED | Shop at ECS Tuning | ||
| 05 | Adapter | MINIUHF/SAP | 1 | 84540143305 | $15.75 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
