Side wall aerial retrofit kit for BMW 3 Series E36 325tds (1994)

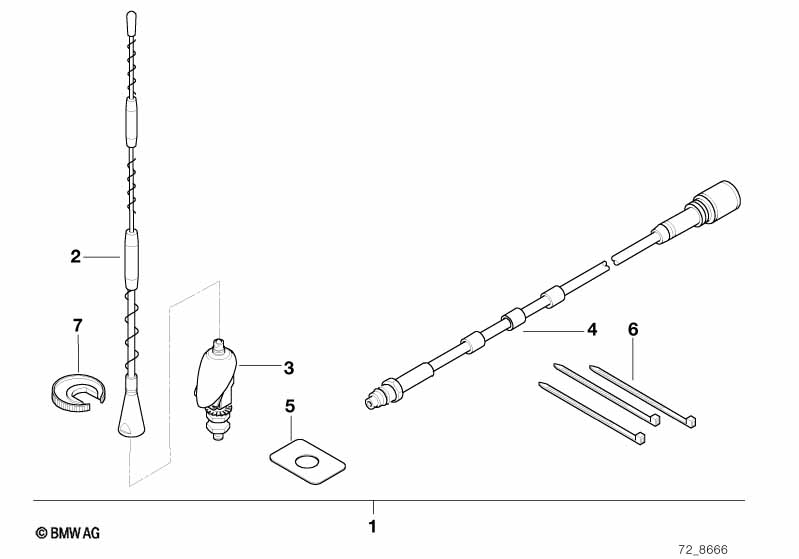

This Side wall aerial retrofit kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, rear antenna | SINGLEBAND | 1 | 84519405006 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Antenna radiator | D-NETZ 837MM | 1 | 84518360970 | $145.63 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Antenna base | D-NETZ | 1 | 84518361244 | $80.07 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Antenna cable | D-NETZ 1000MM | 1 | 84548362165 | ENDED | Shop at ECS Tuning | ||||
| 05 | Cable tie | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 06 | Antenna key | 1 | 84549404727 | $1.34 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
