Side wall aerial retrofit kit for BMW 3 Series E36 325i (1995)

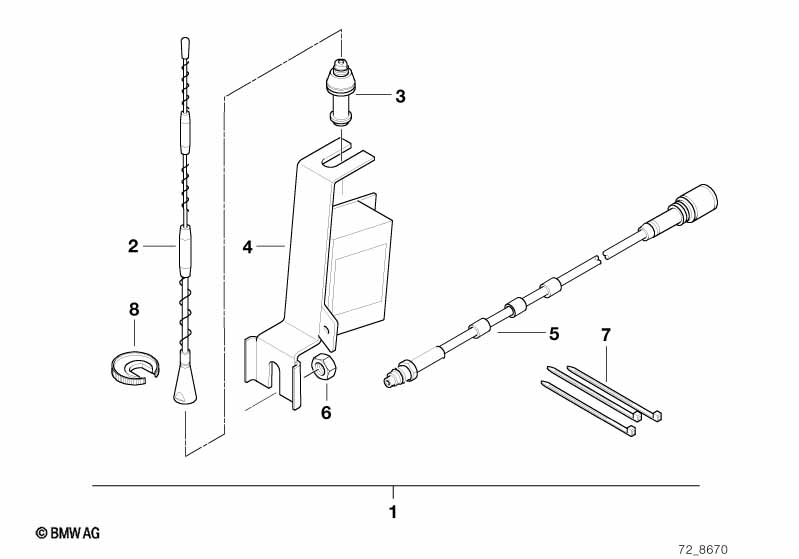

This Side wall aerial retrofit kit technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, rear antenna | SINGLEBAND | 1 | 84519404714 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Antenna radiator | D-NETZ 837MM | 1 | 84518360970 | $145.63 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Antenna base | D-NETZ | 1 | 84518360971 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Antenna diplexer | D-NETZ | 1 | 84518360972 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Antenna cable | D-NETZ 1830MM | 1 | 84548360565 | ENDED | Shop at ECS Tuning | ||||
| 07 | Cable tie | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Antenna key | 1 | 84549404727 | $1.34 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325i Side wall aerial retrofit kit?
- This technical diagram illustrates the Side wall aerial retrofit kit within the Retrofitting / conversion / accessories group for the 3 Series E36 325i produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Retrofit kit, rear antenna (Part #84519404714).
- Which models use the hardware listed in this Side wall aerial retrofit kit?
- The hardware and components featured in the Side wall aerial retrofit kit are specific to the 3 Series E36 325i produced during 1995. These technical specifications ensure that parts like the Retrofit kit, rear antenna (84519404714) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side wall aerial retrofit kit assembly?
- Each item in the Side wall aerial retrofit kit corresponds to the numbered list below the illustration. For the 3 Series E36 325i, you can identify the Retrofit kit, rear antenna by locating its position on the schematic, which then links to the official BMW part number 84519404714 for the Retrofitting / conversion / accessories section.
