Retrofit kit, window antenna for BMW 5 Series E34 525td (1996)

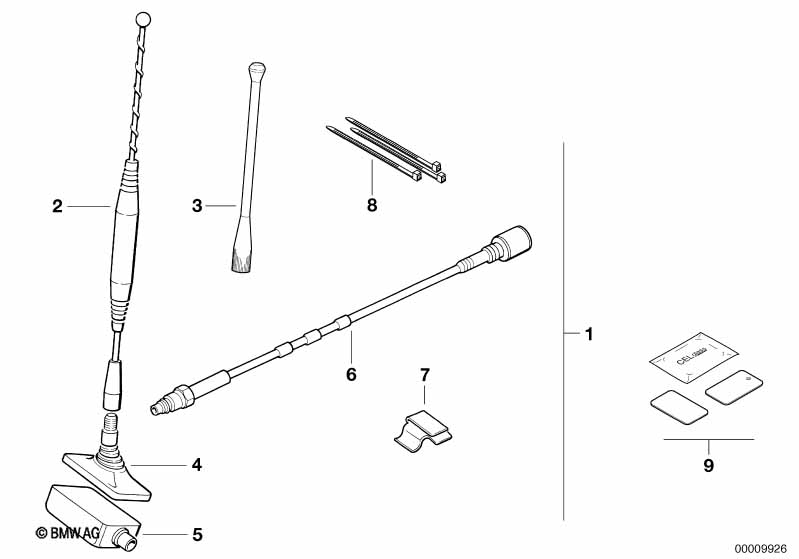

This Retrofit kit, window antenna technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, window antenna | SINGLEBAND | 1 | 06/1996 | 84549404705 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Retrofit kit, window antenna | DUALBAND | 1 | 84540029416 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Antenna radiator | D-NETZ 268MM | 1 | 06/1996 | 84508375138 | $30.97 | ENDED, +core | Shop at ECS Tuning | ||
| 02 | Antenna radiator | D-NETZ 268MM | 1 | 84509119059 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Rear window telephone antenna base | D-NETZ | 1 | 84508375135 | $14.58 | Shop at ECS Tuning | ||||
| 05 | Connecting box | D-NETZ | 1 | 84508375136 | $27.34 | +core | Shop at ECS Tuning | |||
| 06 | Antenna cable | D-NETZ 2500MM | 1 | 84548368629 | ENDED | Shop at ECS Tuning | ||||
| 07 | Antenna cable clip | 3 | 65611392019 | ENDED | Shop at ECS Tuning | |||||
| 08 | Cable tie | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 09 | Adhesive films for on-glass antenna | 1 | 84549404707 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
