Retrofit kit, window antenna for BMW 7 Series E38 730iL (1996)

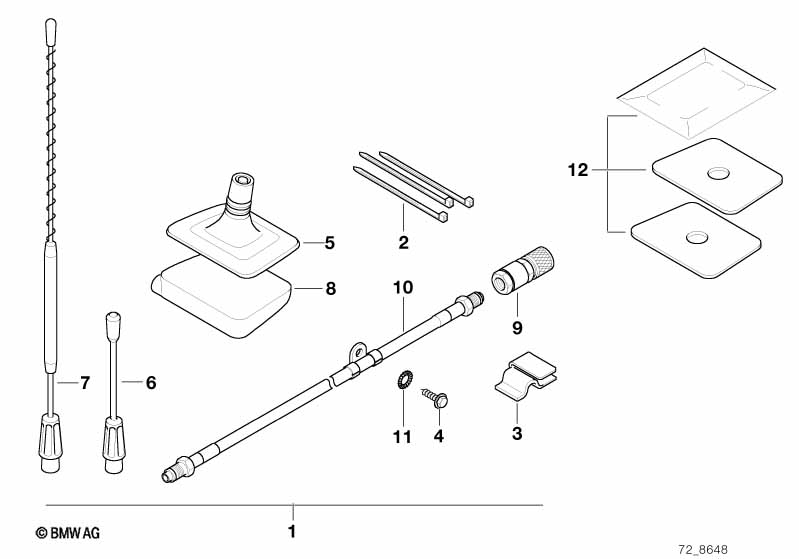

This Retrofit kit, window antenna technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO SA 352 | ||||||||||
| 01 | Retrofit kit, window antenna | DUALBAND | 1 | 84540029412 | ENDED, +core | Shop at ECS Tuning | ||||
| NOT SUITABLE FOR SA 352 | ||||||||||
| 01 | Retrofit kit, window antenna | DUALBAND | 1 | 84540029413 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Cable tie | L=292MM/B=4,8MM | 3 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 03 | Antenna cable clip | 5 | 84138361662 | $0.54 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M5X15 | 1 | 84318361762 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Rear window telephone antenna base | D-NETZ | 1 | 84508369458 | $20.04 | Shop at ECS Tuning | ||||
| 06 | Antenna radiator | D-NETZ 80MM | 1 | 84508369459 | $22.08 | Shop at ECS Tuning | ||||
| 07 | Antenna radiator | D-NETZ 275MM | 1 | 84508369460 | $39.14 | +core | Shop at ECS Tuning | |||
| 08 | Connecting box | D-NETZ | 1 | 84508370551 | $26.62 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Retrofit kit, window antenna | SINGLEBAND | X | 84549405531 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Connecting box | D-NETZ | 1 | 84508369457 | $37.67 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Retrofit kit, window antenna | SINGLEBAND | X | 84549405536 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Adapter | MINIUHF/SAP | 1 | 84540143305 | $15.75 | ENDED | Shop at ECS Tuning | |||
| 10 | Antenna cable | 2810MM | 1 | 84549405539 | ENDED, +core | Shop at ECS Tuning | ||||
| 11 | Tooth washer | A6,4 | 1 | 07119936133 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Adhesive films for on-glass antenna | 1 | 84549405538 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
