Rack support for BMW 3 Series E30 320i (1988)

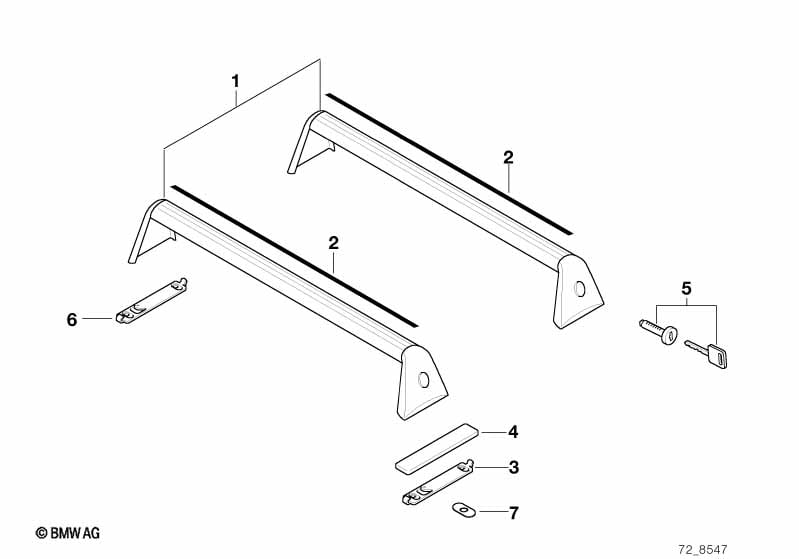

This Rack support technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hardtop carrier | 1 SATZ | 1 | 82129401490 | ENDED | Shop at ECS Tuning | ||||
| 02 | Profile-cover | 2 STÜCK | 2 | 82129401044 | $27.90 | ENDED | Shop at ECS Tuning | |||
| 03 | Adapter for hardtop carrier | 2 STÜCK/VORN | 1 | 82129401042 | $24.30 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover adapter | 4 STÜCK | 4 | 82129401043 | ENDED | Shop at ECS Tuning | ||||
| 05 | Lock for hardtop carrier | 1 STÜCK | 1 | 82129401080 | $83.70 | ENDED | Shop at ECS Tuning | |||
| 06 | Adapter for carrier | 2 STÜCK | 1 | 82129401494 | $35.19 | ENDED | Shop at ECS Tuning | |||
| 07 | Roof-protection for hardtop | 1 SATZ | 4 | 82129401045 | $12.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 320i Rack support?
- This technical diagram illustrates the Rack support within the Retrofitting / conversion / accessories group for the 3 Series E30 320i produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Hardtop carrier (Part #82129401490).
- Which models use the hardware listed in this Rack support?
- The hardware and components featured in the Rack support are specific to the 3 Series E30 320i produced during 1988. These technical specifications ensure that parts like the Hardtop carrier (82129401490) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rack support assembly?
- Each item in the Rack support corresponds to the numbered list below the illustration. For the 3 Series E30 320i, you can identify the Hardtop carrier by locating its position on the schematic, which then links to the official BMW part number 82129401490 for the Retrofitting / conversion / accessories section.
