Rack support for BMW 3 Series E36 318i (1998)

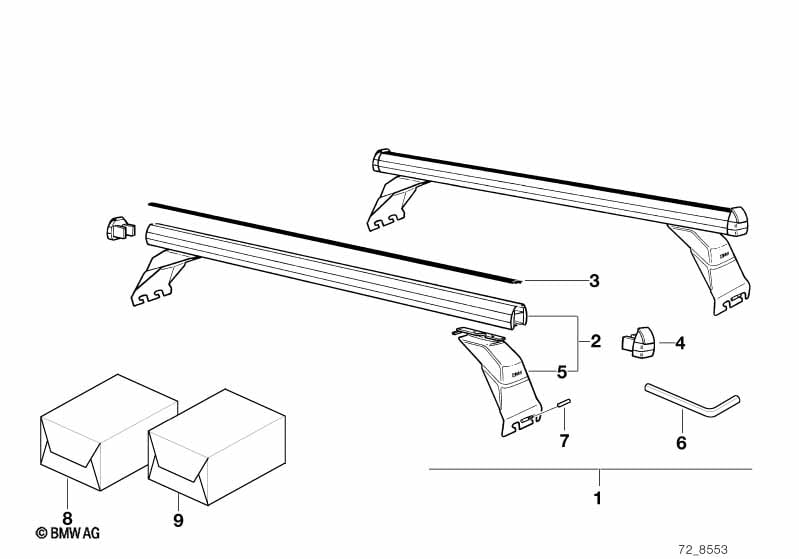

This Rack support technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rack support | 1 | 82719402819 | $195.30 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Profile cover,top | 2 | 82129413122 | $7.50 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering cap | 4 | 82719402947 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rack pad, front left | 1 | 82719404347 | $35.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rack pad, front right | 1 | 82719404348 | $35.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rack pad, rear left | 1 | 82719404349 | $41.24 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Rack pad, rear right | 1 | 82719404350 | $41.24 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Inner hex spanner | 1 | 82719402949 | $5.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clamping bolt | M 7 X 25 | 4 | 82799404859 | $4.00 | ENDED | Shop at ECS Tuning | |||
| 08 | Retrofit kit ->E36/5 | 1 | 82799404592 | $142.85 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Retrofit kit ->E36/3 | 1 | 82799404703 | $70.00 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
