Rack support for BMW 3 Series E36 318ti (1996)

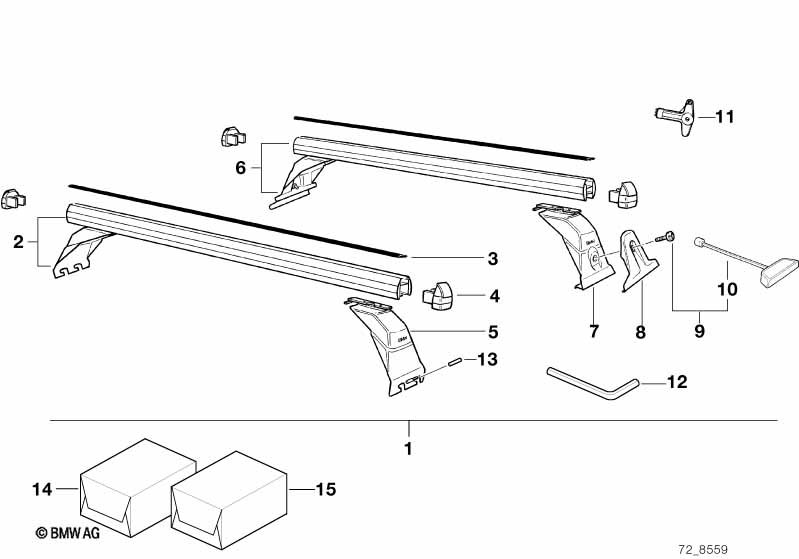

This Rack support technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof rack | E36 | 1 | 82719402820 | $178.95 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Profile cover,top | 2 | 82129413122 | $7.50 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering cap | 4 | 82719402947 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rack pad, front left | 1 | 82719404347 | $35.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rack pad, front right | 1 | 82719404348 | $35.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rack pad, rear left | 1 | 82719404351 | $35.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 07 | Rack pad, rear right | 1 | 82719404352 | $41.24 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Claw, left/right | 2 | 82719404353 | $12.50 | ENDED | Shop at ECS Tuning | ||||
| 09 | Set of keys with screws | 1 | 82799405073 | $29.00 | ENDED | Shop at ECS Tuning | ||||
| 10 | Key (Code) | 1 | 82799405012 | $11.75 | ENDED | Shop at ECS Tuning | ||||
| 11 | Key (Code) | 1 | 82799402944 | ENDED | Shop at ECS Tuning | |||||
| not all codes now kept in stock otherwise 82 71 9 405 073 |
||||||||||
| 12 | Inner hex spanner | 1 | 82719402949 | $5.00 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clamping bolt | M 7 X 25 | 2 | 82799404859 | $4.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Retrofit kit ->E36/4 | 1 | 82799404591 | $99.88 | ENDED, +core | Shop at ECS Tuning | ||||
| 15 | Retrofit kit ->E36/3 | 1 | 82799404703 | $70.00 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
