Roof rack for BMW 7 Series E38 L7 (1998)

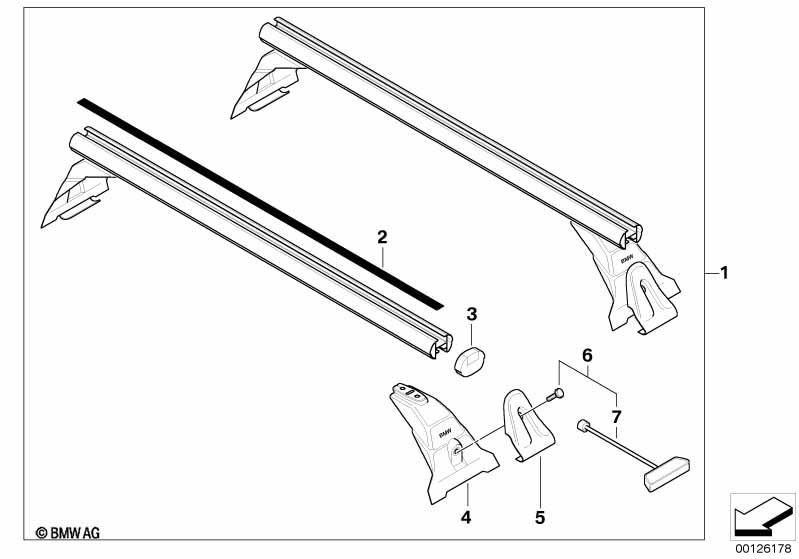

This Roof rack technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 L7. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rack support | E38 | 1 | 82710144382 | $200.95 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Profile cover,top | 1 | 82129413122 | $7.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Covering cap | 4 | 82790301024 | $5.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rack pad,front left/rear right | 2 | 82719404343 | $35.00 | ENDED | Shop at ECS Tuning | ||||
| 04 | Rack pad,front right/rear left | 2 | 82719404344 | $35.00 | ENDED | Shop at ECS Tuning | ||||
| 05 | Claw | 4 | 82719404345 | ENDED | Shop at ECS Tuning | |||||
| 06 | Set of keys with screws | 1 | 82799405073 | $29.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Key (Code) | 1 | 82799405012 | $11.75 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 L7 Roof rack?
- This technical diagram illustrates the Roof rack within the Retrofitting / conversion / accessories group for the 7 Series E38 L7 produced during 1998. It provides a detailed exploded view of the components, identifying key parts such as the Rack support (Part #82710144382).
- Which models use the hardware listed in this Roof rack?
- The hardware and components featured in the Roof rack are specific to the 7 Series E38 L7 produced during 1998. These technical specifications ensure that parts like the Rack support (82710144382) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof rack assembly?
- Each item in the Roof rack corresponds to the numbered list below the illustration. For the 7 Series E38 L7, you can identify the Rack support by locating its position on the schematic, which then links to the official BMW part number 82710144382 for the Retrofitting / conversion / accessories section.
