Rack support for BMW 3 Series E36 M3 (1995)

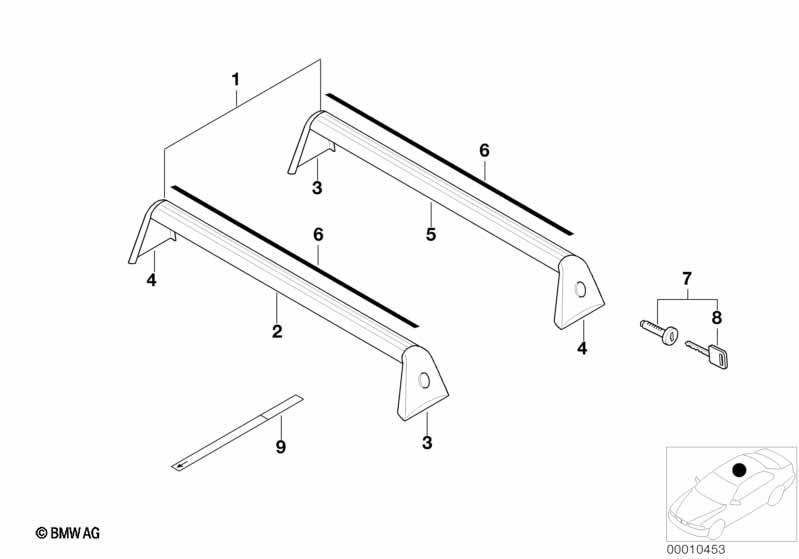

This Rack support technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rack support | AEROPROFIL | 1 | 03/1996 | 82129401526 | $298.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Rack support | 1 | 82719404700 | $249.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Rack support, front | 1 STÜCK | 1 | 82799404124 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Cover front left and rear right | 1 | 82799404125 | ENDED | Shop at ECS Tuning | |||||
| additionally contains coil springs + bracket |
||||||||||
| 04 | Cover front right and rear left | 1 | 82799404126 | ENDED | Shop at ECS Tuning | |||||
| additionally contains coil springs + bracket |
||||||||||
| 05 | Rack support, rear | 1 | 82799404127 | ENDED, +core | Shop at ECS Tuning | |||||
| 06 | Cover,top | 2 | 82799404128 | ENDED | Shop at ECS Tuning | |||||
| 07 | Catch incl. key | 1 | 82799404129 | ENDED | Shop at ECS Tuning | |||||
| 08 | Key (Code) | 1 | 82799404130 | ENDED | Shop at ECS Tuning | |||||
| 09 | Template | 1 | 82799404148 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 M3 Rack support?
- This technical diagram illustrates the Rack support within the Retrofitting / conversion / accessories group for the 3 Series E36 M3 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Rack support (Part #82129401526).
- Which models use the hardware listed in this Rack support?
- The hardware and components featured in the Rack support are specific to the 3 Series E36 M3 produced during 1995. These technical specifications ensure that parts like the Rack support (82129401526) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rack support assembly?
- Each item in the Rack support corresponds to the numbered list below the illustration. For the 3 Series E36 M3, you can identify the Rack support by locating its position on the schematic, which then links to the official BMW part number 82129401526 for the Retrofitting / conversion / accessories section.
