Railing/Cross member for BMW 3 Series E36 325tds (1999)

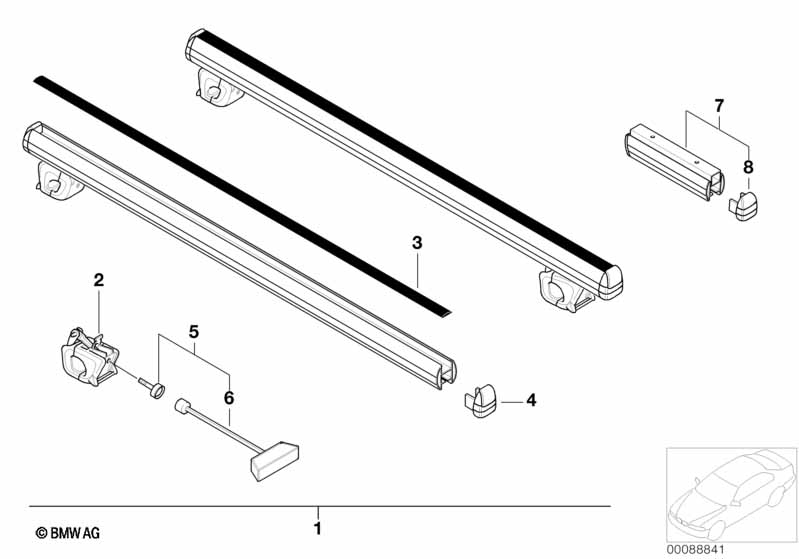

This Railing/Cross member technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set cross member | 1 | 82710002063 | $179.95 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Clamp with screw (Code) | 4 | 82790004335 | $41.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Muffler clamp | 4 | 82799408628 | $41.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Profile cover,top | 2 | 82129413122 | $7.50 | ENDED | Shop at ECS Tuning | ||||
| 04 | Covering cap | 4 | 82719402947 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 06 | Key (Code) | 1 | 82799405012 | $11.75 | ENDED | Shop at ECS Tuning | ||||
| 07 | Set of raised cross member for rails | 1 | 82790002064 | $47.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Raising section cover cap | 8 | 82710137509 | $1.50 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E36 325tds Railing/Cross member?
- This technical diagram illustrates the Railing/Cross member within the Retrofitting / conversion / accessories group for the 3 Series E36 325tds produced during 1999. It provides a detailed exploded view of the components, identifying key parts such as the Set cross member (Part #82710002063).
- Which models use the hardware listed in this Railing/Cross member?
- The hardware and components featured in the Railing/Cross member are specific to the 3 Series E36 325tds produced during 1999. These technical specifications ensure that parts like the Set cross member (82710002063) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Railing/Cross member assembly?
- Each item in the Railing/Cross member corresponds to the numbered list below the illustration. For the 3 Series E36 325tds, you can identify the Set cross member by locating its position on the schematic, which then links to the official BMW part number 82710002063 for the Retrofitting / conversion / accessories section.
