Roof box for BMW 5 Series E34 525tds (1996)

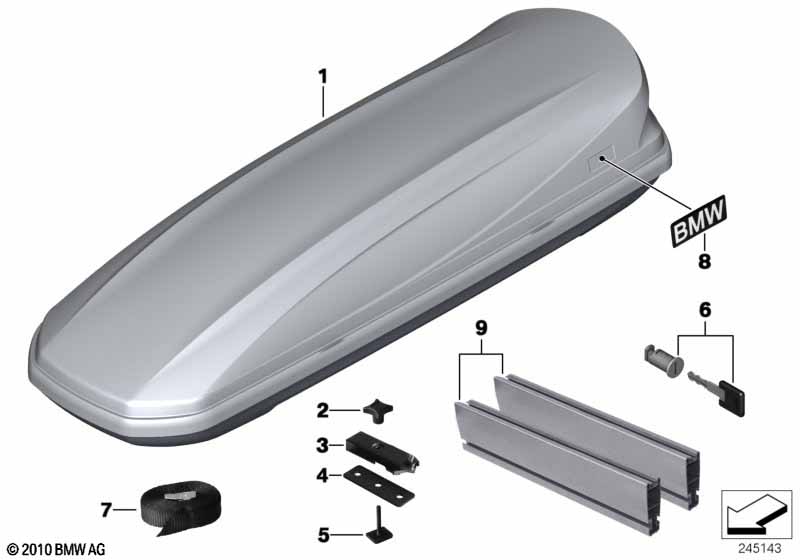

This Roof box technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Roof-mounted container 320 LCI | SILBER | 1 | 82732209906 | ENDED | Shop at ECS Tuning | ||||
| 01 | Roof-mounted container 320 LCI | SCHWARZ | 1 | 82732209907 | ENDED | Shop at ECS Tuning | ||||
| 02 | Clamping bolt | DACHBOX | 4 | 82730300926 | $7.50 | Shop at ECS Tuning | ||||
| 03 | Clamp plate | DACHBOX | 4 | 82730300927 | $6.75 | Shop at ECS Tuning | ||||
| 04 | Base | DACHBOX | 2 | 82730300928 | $0.50 | Shop at ECS Tuning | ||||
| 05 | Slidning block | DACHBOX | 4 | 82730300929 | $2.50 | Shop at ECS Tuning | ||||
| 06 | Catch incl. key | 1 | 82730300930 | $19.00 | ENDED | Shop at ECS Tuning | ||||
| 07 | Tensioning belt | DACHBOX | 2 | 82730300931 | $17.19 | Shop at ECS Tuning | ||||
| 08 | Label | DACHBOX | 2 | 82730300932 | $16.00 | Shop at ECS Tuning | ||||
| 09 | Ski supports | DACHBOX 320 NF | 1 | 82732209908 | ENDED | Shop at ECS Tuning |
