Touring bicycle holder for BMW 3 Series E30 325ix (1990)

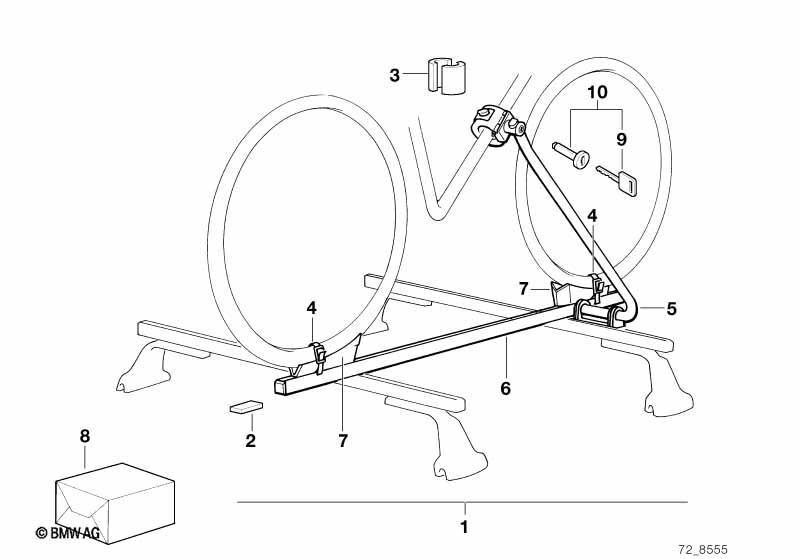

This Touring bicycle holder technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bicycle rack | 1 SATZ | 1 | 02/1994 | 82129401131 | $133.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Touring bicycle holder | 1 | 02/1994 | 82729402897 | $100.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Touring bicycle holder | 1 SATZ | 1 | 02/1994 | 82729405242 | $121.95 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Touring bicycle holder | 1 | 02/1994 | 82720137716 | $140.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Touring bicycle holder | 1 | 82712166924 | ENDED | Shop at ECS Tuning | |||||
| 01 | Touring bicycle holder | 1 SATZ | 1 | 02/1994 | 82129413954 | $116.95 | ENDED | Shop at ECS Tuning | ||
| 01 | Touring bicycle holder | 1 | 02/1994 | 82729402897 | $100.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Touring bicycle holder | 1 SATZ | 1 | 02/1994 | 82729405242 | $121.95 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Touring bicycle holder | 1 | 02/1994 | 82720137716 | $140.95 | ENDED | Shop at ECS Tuning | |||
| 01 | Touring bicycle holder | 1 | 82712166924 | ENDED | Shop at ECS Tuning | |||||
| 02 | Adapter for bicycle rack | 1 | 82129401495 | $22.50 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rubber inlays,thin | 1 | 82129401403 | $10.50 | ENDED | Shop at ECS Tuning | ||||
| 04 | Belt for bicycle rack | 2 | 82129413124 | $4.75 | ENDED | Shop at ECS Tuning | ||||
| 05 | Retaining arm | 1 | 82799404153 | ENDED | Shop at ECS Tuning | |||||
| 06 | Travers bars lockable | 1 | 82799404155 | ENDED | Shop at ECS Tuning | |||||
| 07 | Wheel base | 2 | 82799404156 | ENDED | Shop at ECS Tuning | |||||
| 08 | Mounting-kit | 1 SATZ | 1 | 82799404157 | ENDED | Shop at ECS Tuning | ||||
| 09 | Key (Code) | 1 | 82129413171 | $9.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 10 | Lock cylinder with key | 1 STÜCK | 1 | 82129413120 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
