Ski holder for BMW 7 Series E32 740i (1994)

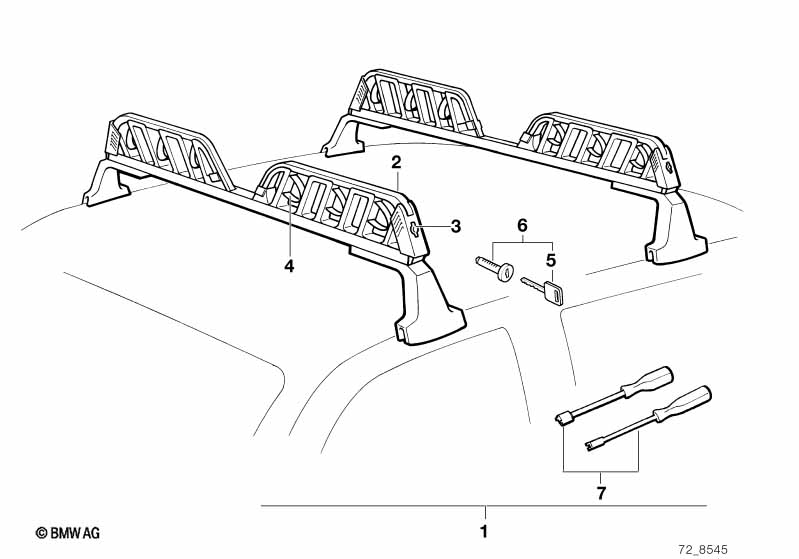

This Ski holder technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set ski holder | 1 SATZ | 1 | 82129413949 | $166.28 | ENDED | Shop at ECS Tuning | |||
| 01 | Ski carrier | 1 | 82720406587 | $167.95 | ENDED | Shop at ECS Tuning | ||||
| 01 | Standard ski holder | 1 | 82729404370 | $98.50 | ENDED | Shop at ECS Tuning | ||||
| 02 | Ski holder | 4 | 82799404117 | ENDED | Shop at ECS Tuning | |||||
| 03 | Lock cover | 1 STÜCK | 4 | 82129413724 | $2.12 | ENDED | Shop at ECS Tuning | |||
| 04 | Plastic ring with spring | 12 | 82799404119 | ENDED | Shop at ECS Tuning | |||||
| 05 | Key (Code) | 1 | 82129413171 | $9.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 06 | Lock cylinder with key | 1 STÜCK | 4 | 82129413120 | ENDED | Shop at ECS Tuning | ||||
| 07 | Socket wrench | 1 | 82129413117 | ENDED | Shop at ECS Tuning | |||||
| 07 | Socket wrench | 1 | 82129413127 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
