Ski rack for BMW 7 Series E32 750i (1994)

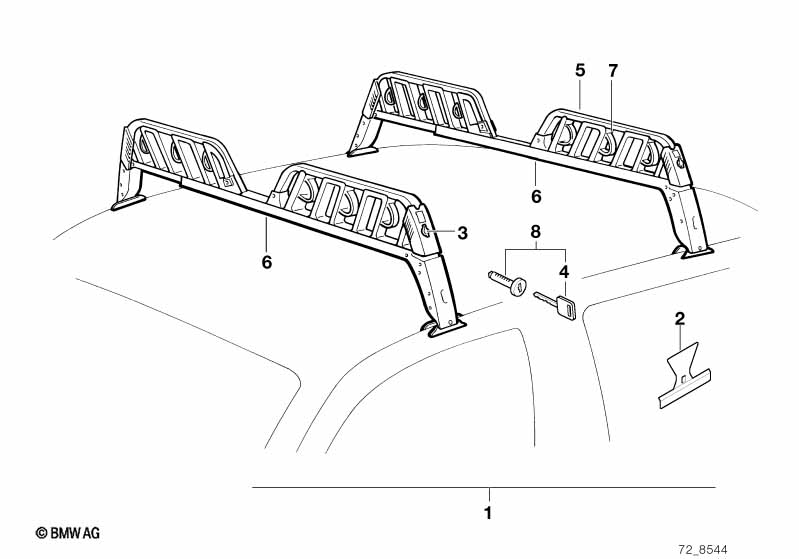

This Ski rack technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Multifunctional ski rack | 1 | 82129401018 | ENDED | Shop at ECS Tuning | |||||
| 01 | Ski rack set complete | 1 SATZ | 1 | 82729401432 | $180.79 | ENDED | Shop at ECS Tuning | |||
| 02 | Roof drainage protector | 4 STÜCK | 4 | 82129413723 | $15.99 | ENDED | Shop at ECS Tuning | |||
| 03 | Lock cover | 1 STÜCK | 4 | 82129413724 | $2.12 | ENDED | Shop at ECS Tuning | |||
| 04 | Key (Code) | 1 | 82129413171 | $9.50 | ENDED, +core | Shop at ECS Tuning | ||||
| 05 | Ski holder | 1 STÜCK | 4 | 82799404116 | ENDED | Shop at ECS Tuning | ||||
| 06 | Complete ski rack front/rear | 1 STÜCK | 1 | 82799404118 | ENDED | Shop at ECS Tuning | ||||
| 07 | Plastic ring with spring | 1 | 82799404119 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lock cylinder with key | 1 STÜCK | 1 | 82129413120 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E32 750i Ski rack?
- This technical diagram illustrates the Ski rack within the Retrofitting / conversion / accessories group for the 7 Series E32 750i produced during 1994. It provides a detailed exploded view of the components, identifying key parts such as the Multifunctional ski rack (Part #82129401018).
- Which models use the hardware listed in this Ski rack?
- The hardware and components featured in the Ski rack are specific to the 7 Series E32 750i produced during 1994. These technical specifications ensure that parts like the Multifunctional ski rack (82129401018) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Ski rack assembly?
- Each item in the Ski rack corresponds to the numbered list below the illustration. For the 7 Series E32 750i, you can identify the Multifunctional ski rack by locating its position on the schematic, which then links to the official BMW part number 82129401018 for the Retrofitting / conversion / accessories section.
