Rear carrier ECE for BMW 3 Series E92 LCI 335xi (2013)

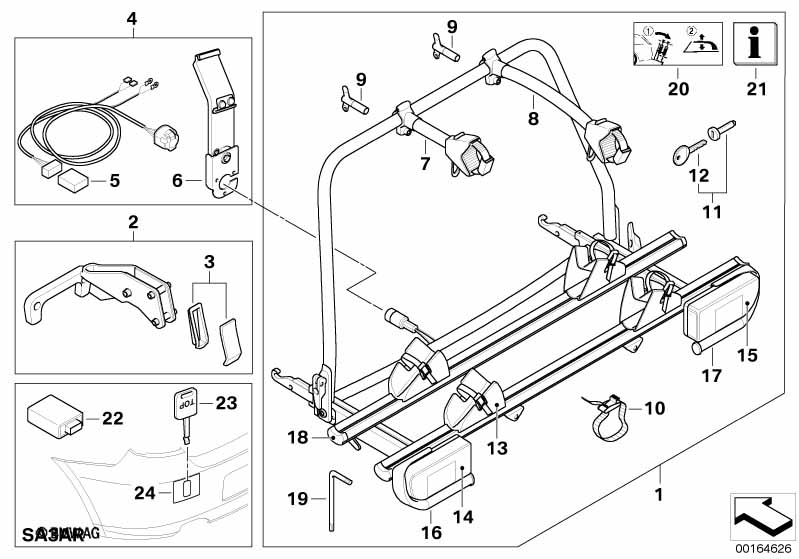

This Rear carrier ECE technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with M Sports package and Towing hitch, detachable and Trailer coupling and M Aerodynamics package and Aerodynamics components for M Package and Body styling and Aerodynamics package |
P337A=No S235A=No S3ACA=No S715A=No SZE1A=No SZE2A=No SZE3A=No |
|||||||||
| 01 | Rear carrier ECE | E92/E93 | 1 | 82710414679 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Installation kit | E92/E93 | 1 | 82710414680 | ENDED | Shop at ECS Tuning | ||||
| -- | Electrical kit, rear support | E92 | 1 | 82710431588 | ENDED, +core | Shop at ECS Tuning | ||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 02 | Installation kit | E92/E93 | 1 | 82710414680 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Cover plates | E92 / E93 | 1 | 82710007384 | $29.00 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Adhesive 1K | 50 ML | 1 | 82699408866 | $14.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with M Sports package and Towing hitch, detachable and Trailer coupling and M Aerodynamics package and Aerodynamics components for M Package and Body styling and Aerodynamics package Observe Repair Manual REP-61 35 502! |
P337A=No S235A=No S3ACA=No S715A=No SZE1A=No SZE2A=No SZE3A=No |
|||||||||
| 04 | Electrical kit, rear support | E92 | 1 | 82710431588 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Trailer towing modul | 4R | 1 | 71606850497 | Shop at ECS Tuning | |||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 61131393724 | $0.28 | Shop at ECS Tuning | ||||
| -- | Covering cap | 1 | 61136905167 | $2.59 | Shop at ECS Tuning | |||||
| -- | Socket housing | 20 POL./ Z-CODE | 1 | 61136905178 | $1.05 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 1 | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Trailer towing modul | 4R | 1 | 12/2010 | 71606850497 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket terminal MQS | 0,5-0.75 MM²/SN | 1 | 12/2010 | 61131393724 | $0.28 | Shop at ECS Tuning | |||
| -- | Covering cap | 1 | 12/2010 | 61136905167 | $2.59 | Shop at ECS Tuning | ||||
| -- | Socket housing | 20 POL./ Z-CODE | 1 | 12/2010 | 61136905178 | $1.05 | Shop at ECS Tuning | |||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | 1 | 12/2010 | 61138364834 | $0.35 | Shop at ECS Tuning | |||
| 06 | Holder, electrical socket ECE | E92 E93 | 1 | 82710418152 | ENDED | Shop at ECS Tuning | ||||
| 07 | Spacer, short | HECKTRÄGER | 1 | 82710421328 | $61.00 | ENDED | Shop at ECS Tuning | |||
| 08 | Spacer, long | HECKTRÄGER | 1 | 82710421329 | $61.00 | ENDED | Shop at ECS Tuning | |||
| 09 | Key | 1 | 82720390480 | $4.25 | ENDED | Shop at ECS Tuning | ||||
| 10 | Strap | 2 | 82720154315 | $2.50 | Shop at ECS Tuning | |||||
| 11 | 4 lock barrels with key | 3 | 82795A08687 | Shop at ECS Tuning | ||||||
| 11 | Lock cylinder with key | 3 | 82720303536 | $24.75 | ENDED | Shop at ECS Tuning | ||||
| no longer available | ||||||||||
| 12 | Key (Code) | CODE 001...041 | 2 | 82720144049 | $8.50 | ENDED, +core | Shop at ECS Tuning | |||
| no longer available | ||||||||||
| 13 | Wheel tray | HECKTRÄGER | 4 | 82710430977 | ENDED | Shop at ECS Tuning | ||||
| 14 | Rear light, left | 1 | 10/2013 | 82710421333 | $61.00 | ENDED | Shop at ECS Tuning | |||
| 14 | Rear light, left | 1 | 82792449919 | Shop at ECS Tuning | ||||||
| 15 | Rear light, right | 1 | 10/2013 | 82710421332 | $61.00 | ENDED | Shop at ECS Tuning | |||
| 15 | Rear light, right | 1 | 82792449920 | Shop at ECS Tuning | ||||||
| 16 | Lamp guard, left | 1 | 82710421335 | Shop at ECS Tuning | ||||||
| 17 | Lamp guard, right | 1 | 82710421334 | Shop at ECS Tuning | ||||||
| 18 | Cover | 4 | 82710421336 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 19 | Torx wrench | 1 | 82710414294 | $5.00 | ENDED | Shop at ECS Tuning | ||||
| 21 | Mounting information | E92 | 1 | 01290007387 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
