Rear carrier ski/snowboard holder for BMW 1 Series E88 125i (2013)

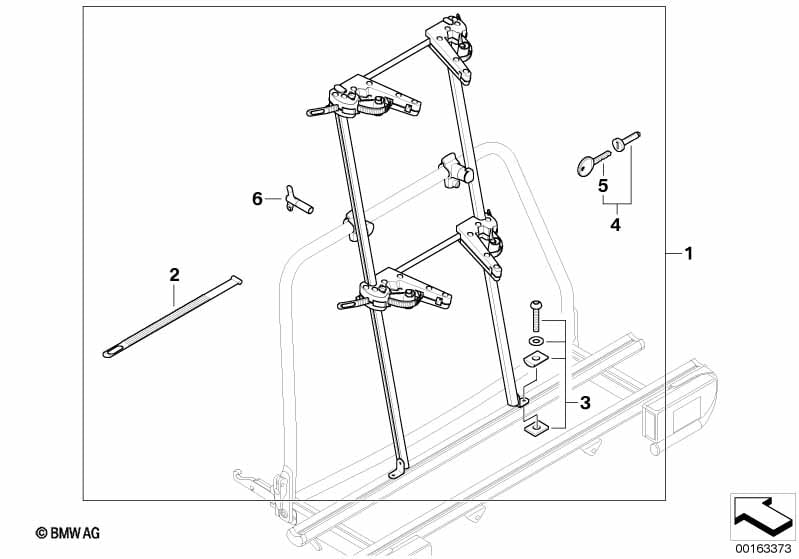

This Rear carrier ski/snowboard holder technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 125i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with Rear carrier |
SZEEA=Yes |
|||||||||
| 01 | Ski//snowboard rack | 1 | 82710415134 | $449.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Tension belt | 38 CM | 2 | 82790301596 | $17.75 | ENDED | Shop at ECS Tuning | |||
| 02 | Tension belt | 61,5 CM | 2 | 82790301597 | $22.50 | ENDED | Shop at ECS Tuning | |||
| 03 | Parts set | R56 | 1 | 82710421341 | $5.50 | ENDED | Shop at ECS Tuning | |||
| 04 | 4 lock barrels with key | 2 | 82795A08687 | Shop at ECS Tuning | ||||||
| 04 | Lock cylinder with key | 2 | 82720303536 | $24.75 | ENDED | Shop at ECS Tuning | ||||
| no longer available | ||||||||||
| 05 | Key (Code) | CODE 001...041 | 2 | 82720144049 | $8.50 | ENDED, +core | Shop at ECS Tuning | |||
| no longer available | ||||||||||
| 06 | Key | 1 | 82720390480 | $4.25 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
