Rear rack, US SA3AR for BMW 1 Series E82 135i (2010)

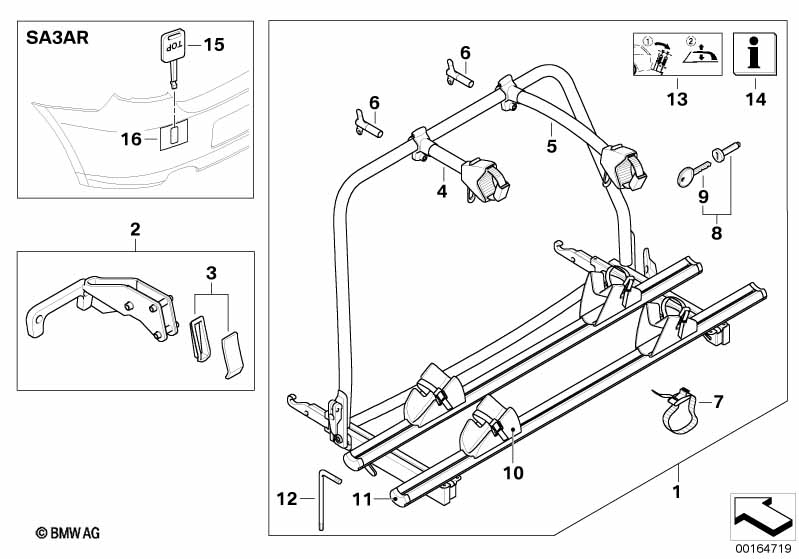

This Rear rack, US SA3AR technical drawing provides a detailed breakdown of the assembly for the 1 Series E82 135i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with Preparations for rear luggage carrier |
S3ARA=Yes |
|||||||||
| 01 | Rear rack, US | E8X | 1 | 82710429414 | $482.95 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Mounting information | E82/E88 SA3AR | 1 | 82710433699 | ENDED | Shop at ECS Tuning | ||||
| 04 | Spacer, short | HECKTRÄGER | 1 | 82710421328 | $61.00 | ENDED | Shop at ECS Tuning | |||
| 05 | Spacer, long | HECKTRÄGER | 1 | 82710421329 | $61.00 | ENDED | Shop at ECS Tuning | |||
| 06 | Key | 1 | 82720390480 | $4.25 | ENDED | Shop at ECS Tuning | ||||
| 07 | Strap | 2 | 82720154315 | $2.50 | Shop at ECS Tuning | |||||
| 08 | 4 lock barrels with key | 3 | 82795A08687 | Shop at ECS Tuning | ||||||
| 08 | Lock cylinder with key | 3 | 82720303536 | $24.75 | ENDED | Shop at ECS Tuning | ||||
| no longer available | ||||||||||
| 09 | Key (Code) | CODE 001...041 | 2 | 82720144049 | $8.50 | ENDED, +core | Shop at ECS Tuning | |||
| no longer available | ||||||||||
| 10 | Wheel tray | HECKTRÄGER | 4 | 82710430977 | ENDED | Shop at ECS Tuning | ||||
| 11 | Cover | 4 | 82710421336 | $1.50 | ENDED | Shop at ECS Tuning | ||||
| 12 | Torx wrench | 1 | 82710414294 | $5.00 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Preparations for rear luggage carrier |
S3ARA=Yes |
|||||||||
| 14 | Mounting information | E82/E88 SA3AR | 1 | 82710433699 | ENDED | Shop at ECS Tuning | ||||
| 15 | Tire lever | E82 / E88 | 1 | 82710433527 | ENDED | Shop at ECS Tuning | ||||
| 16 | Paint protection foil | E82E88 | 1 | 82710441071 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
