Bicycle carrier, trailer coupling for BMW 3 Series E30 320i (1992)

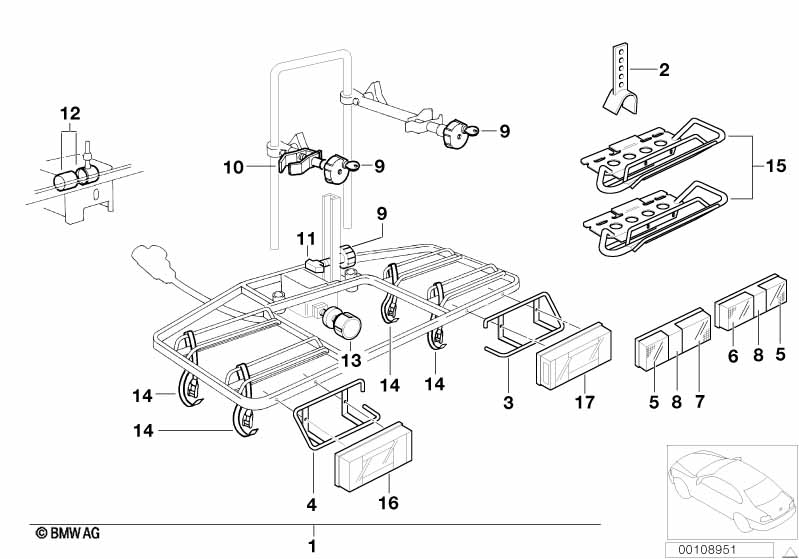

This Bicycle carrier, trailer coupling technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bicycle rack for AHK | 1 | 02/1994 | 82729407980 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Bicycle rack for AHK | 1 | 02/1994 | 82720142772 | $499.95 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Rear fog light shutoff | OHNE ÜBERW. | 1 | 02/1994 | 71609413699 | ENDED | Shop at ECS Tuning | |||
| 01 | Bicycle rack for AHK | 1 | 82720399099 | $563.30 | ENDED | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Rear fog light shutoff | OHNE ÜBERW. | 1 | 71609413699 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lamp guard, right | 1 | 82799408499 | ENDED | Shop at ECS Tuning | |||||
| 04 | Lamp guard, left | 1 | 82799408504 | ENDED | Shop at ECS Tuning | |||||
| 05 | Cover glass right/left | 2 | 04/2001 | 82799408508 | ENDED | Shop at ECS Tuning | ||||
| 06 | Reversing light lens cover | 1 | 04/2001 | 82799408509 | ENDED | Shop at ECS Tuning | ||||
| 07 | Rear fog light lens cover | 1 | 04/2001 | 82799408511 | ENDED | Shop at ECS Tuning | ||||
| 08 | Reflector right/left | 2 | 04/2001 | 82799408512 | ENDED | Shop at ECS Tuning | ||||
| 09 | Lockable handwheel | 3 | 82799408514 | $53.57 | ENDED | Shop at ECS Tuning | ||||
| 10 | Holder | 2 | 82799404852 | $33.76 | ENDED | Shop at ECS Tuning | ||||
| 11 | T-bolt | 1 | 82799408518 | ENDED, +core | Shop at ECS Tuning | |||||
| 12 | Clamping | 1 | 82799404853 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hinged screw | 1 | 82790025053 | ENDED | Shop at ECS Tuning | |||||
| 13 | Hinged screw | 1 | 82799404854 | ENDED | Shop at ECS Tuning | |||||
| 14 | Belt for bicycle rack | 4 | 82799404855 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
