Bicycle carrier, trailer coupling for BMW 7 Series E32 730iL (1994)

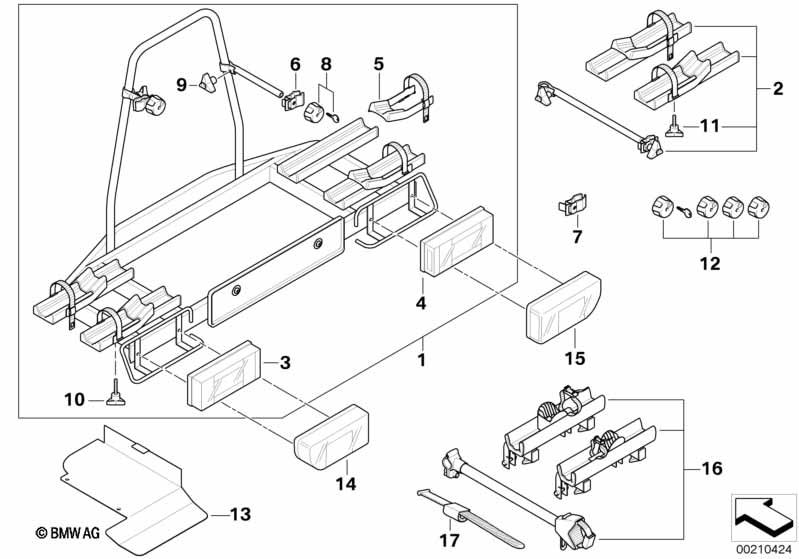

This Bicycle carrier, trailer coupling technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 730iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bicycle rack for AHK | 1 | 82720142772 | $499.95 | ENDED | Shop at ECS Tuning | ||||
| Not authorised for 8-cylinder E53/X5 Carrier is in exhaust gas stream! |
||||||||||
| 01 | Bicycle rack for AHK | 1 | 82720399099 | $563.30 | ENDED | Shop at ECS Tuning | ||||
| Not authorised for 8-cylinder E53/X5 Carrier is in exhaust gas stream! |
||||||||||
| 02 | Third bicycle mounting fixture | 1 | 82720145795 | $139.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Cover glass,left | 1 | 08/2007 | 82790142768 | $55.80 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Cover glass,right | 1 | 08/2007 | 82790142769 | $55.80 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Rim shoe | 4 | 82790149185 | $26.23 | ENDED | Shop at ECS Tuning | ||||
| Nicht passend zu 0 399 099 Nicht passend zu 0 415 551 |
||||||||||
| 06 | Holder | 2 | 82799404852 | $33.76 | ENDED | Shop at ECS Tuning | ||||
| 07 | Holder XL | 1 | 82790149187 | $37.94 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Lockable handwheel | 3 | 82799408514 | $53.57 | ENDED | Shop at ECS Tuning | ||||
| 09 | Star handle | 2 | 82790149188 | $9.04 | ENDED | Shop at ECS Tuning | ||||
| 10 | Star handle | M 6 X 35 | 4 | 82790149242 | $6.50 | ENDED | Shop at ECS Tuning | |||
| 11 | Star handle | 2 | 82790149243 | $6.50 | ENDED | Shop at ECS Tuning | ||||
| 12 | Handwheel set | 1 | 82790149191 | $93.74 | ENDED | Shop at ECS Tuning | ||||
| 16 | Third bicycle mounting fixture | 1 | 82722158967 | ENDED, +core | Shop at ECS Tuning | |||||
| 17 | Ratchet strap | 1 | 82722159337 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
