Rear bicycle carrier, compact for BMW 2 Series F45 Active Tourer LCI 218dX (2021)

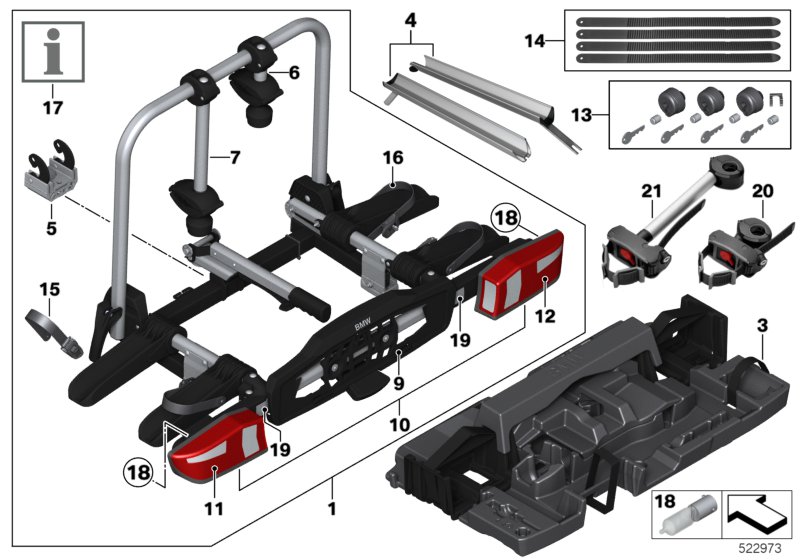

This Rear bicycle carrier, compact technical drawing provides a detailed breakdown of the assembly for the 2 Series F45 Active Tourer LCI 218dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2021.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: The installation instructions are not included in the retrofit kit. The installation instructions shall be printed out from the Electronic Parts Catalog (EPC) on that day and given to the customer. Components that are not listed in the installation instructions are installed according to ISTA/AIR. |
|||||||||
| For vehicles with Emergency spare wheel and Preparations for rear luggage carrier and 3rd seat row |
S300A=No S3ARA=Yes S4UBA=No |
|||||||||
| 01 | Rear bicycle carrier, compact | RHD | 1 | 82722413420 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Ball hitch rear carrier | 1 | 71606870724 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable and Central locking with antitheft system and Trailer coupling and 3rd seat row |
S235A=Yes S300A=No S3ACA=No S4UBA=No |
|||||||||
| 01 | Rear bicycle carrier, compact | RHD | 1 | 82722413420 | Shop at ECS Tuning | |||||
| For vehicles with Towing hitch, detachable and Central locking with antitheft system and Trailer coupling and 3rd seat row |
S235A=No S300A=No S3ACA=Yes S4UBA=No |
|||||||||
| 01 | Rear bicycle carrier, compact | RHD | 1 | 82722413420 | Shop at ECS Tuning | |||||
| For vehicles with Emergency spare wheel and 3rd seat row |
S300A=No S4UBA=No |
|||||||||
| 03 | Set, tray, rear bicycle carrier, compact | F39/F45/F46/F48 | 1 | 10/2015 | 82272411656 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Rear bicycle carrier, compact | F39/F45/F46/F48 | X | 10/2015 | 82722354449 | ENDED | Shop at ECS Tuning | |||
| 04 | Ramp for rear carrier | PRO & PRO 2.0 | 1 | 82722295787 | ENDED | Shop at ECS Tuning | ||||
| 05 | Trailer coupling rack brace | PRO & PRO 2.0 | 1 | 82722295789 | Shop at ECS Tuning | |||||
| 06 | Spacer, short | PRO/PRO2.0/KOMP | 1 | 82722459970 | Shop at ECS Tuning | |||||
| 07 | Spacer, medium | PRO/PRO2.0/KOMP | 1 | 82722459971 | Shop at ECS Tuning | |||||
| 09 | License plate holder | PRO & PRO 2.0 | 1 | 82722299712 | Shop at ECS Tuning | |||||
| 10 | Light kit for RHD | 3.0 & KOMPAKT | 1 | 82792408514 | Shop at ECS Tuning | |||||
| 11 | Tail light lens, left | PRO & PRO 2.0 | 1 | 82722299709 | Shop at ECS Tuning | |||||
| 12 | Tail light lens, right | PRO & PRO 2.0 | 1 | 82722299710 | Shop at ECS Tuning | |||||
| 13 | Set uniform locking system | PRO/PRO2.0/KOMP | 1 | 82722459969 | ENDED | Shop at ECS Tuning | ||||
| Also for replacement of keys | ||||||||||
| 13 | Set uniform locking system | 1 | 82725A4BAF2 | Shop at ECS Tuning | ||||||
| Also for replacement of keys | ||||||||||
| For tire widths of 3" (76 mm) and greater: |
||||||||||
| 14 | 4 toothed belts long for fat bikes | PRO/PRO2.0/KOMP | 1 | 82722459968 | Shop at ECS Tuning | |||||
| 15 | Ratchet mechanism & toothed belt, left | PRO & PRO 2.0 | 1 | 82722299707 | Shop at ECS Tuning | |||||
| 16 | Ratchet mechanism & toothed belt, right | PRO & PRO 2.0 | 1 | 82722299708 | Shop at ECS Tuning | |||||
| 17 | Mounting information | F45 | 1 | 01292405433 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Rear bicycle carrier, compact | F39/F45/F46/F48 | X | 82722354449 | ENDED | Shop at ECS Tuning | ||||
| 18 | Turn signal bulb | PRO & PRO 2.0 | 2 | 82722338490 | Shop at ECS Tuning | |||||
| 19 | Hinge for tail light | KOMPAKT | 2 | 82792444269 | Shop at ECS Tuning | |||||
| 20 | Support.arm with sling for 1st bicycle | 1 | 82725A4BAD6 | Shop at ECS Tuning | ||||||
| 21 | Support.arm with sling for 2nd bicycle | 1 | 82725A4BAD9 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
