Accessories and Retrofittings for BMW 2 Series F87 M2 M2 (2017)

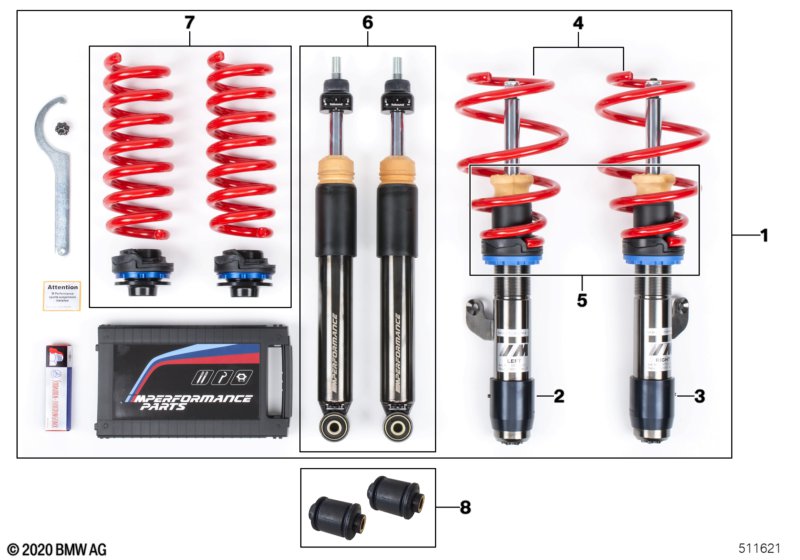

This Accessories and Retrofittings technical drawing provides a detailed breakdown of the assembly for the 2 Series F87 M2 M2. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Note: For Mainland China: Retrofitting not following GA-801 2019 is only allowed for use on racetrack and not for use on public roads according to the relevant retrofitting regulation. For vehicles with National version Korea |
L802A=No |
||||||||
| 01 | Retrofit kit sports suspension | M PERFORMANCE | 1 | 33502413033 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Nut, self-locking | M14X1,5-05 ZNS3 | 2 | 34339806226 | Shop at ECS Tuning | |||||
| -- | 12-point nut | M14X1,5 ZNNIVSI | 2 | 33527850600 | Shop at ECS Tuning | |||||
| -- | Gasket | 2 | 33506866038 | Shop at ECS Tuning | ||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
| -- | Hexagon nut with collar | M10-10 ZNS3 | 4 | 33326768884 | $1.39 | Shop at ECS Tuning | ||||
| -- | Gasket | 2 | 31307854446 | Shop at ECS Tuning | ||||||
| -- | Hexagon screw with flange | M8X33 10.9 ZNS3 | 10 | 31307855400 | Shop at ECS Tuning | |||||
| -- | Hex bolt with washer | M10X80-U1-10.9 | 2 | 07119905418 | $3.12 | Shop at ECS Tuning | ||||
| -- | Hex bolt with washer | M12X125-10-ZNS3 | 2 | 07119905610 | $3.84 | Shop at ECS Tuning | ||||
| 02 | Shock absorber, front left | M PERFORMANCE | 1 | 31302448586 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shock absorber, front right | M PERFORMANCE | 1 | 31302448587 | Shop at ECS Tuning | |||||
| 03 | Shock absorber, front right | M PERFORMANCE | 1 | 31302448587 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Shock absorber, front left | M PERFORMANCE | 1 | 31302448586 | Shop at ECS Tuning | |||||
| 04 | Set of springs, front | M PERFORMANCE | 1 | 31302448588 | Shop at ECS Tuning | |||||
| 05 | Repair kit, front | M PERFORMANCE | 1 | 31302448589 | Shop at ECS Tuning | |||||
| 06 | Shock absorber, rear | M PERFORMANCE | 2 | 31302448591 | Shop at ECS Tuning | |||||
| 07 | Set of springs, rear | M PERFORMANCE | 1 | 31302448590 | Shop at ECS Tuning | |||||
| Lubricant "Circo Light" 2 405 829 is required for the installation |
||||||||||
| 08 | Repair kit shock absorber rubber bushing | 1 | 33525A2DBC3 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Self-locking collar nut | M12X1,5-10 ZNS3 | 2 | 33326760668 | $0.62 | Shop at ECS Tuning | ||||
