Warning vest for BMW 8 Series E31 850CSi (1996)

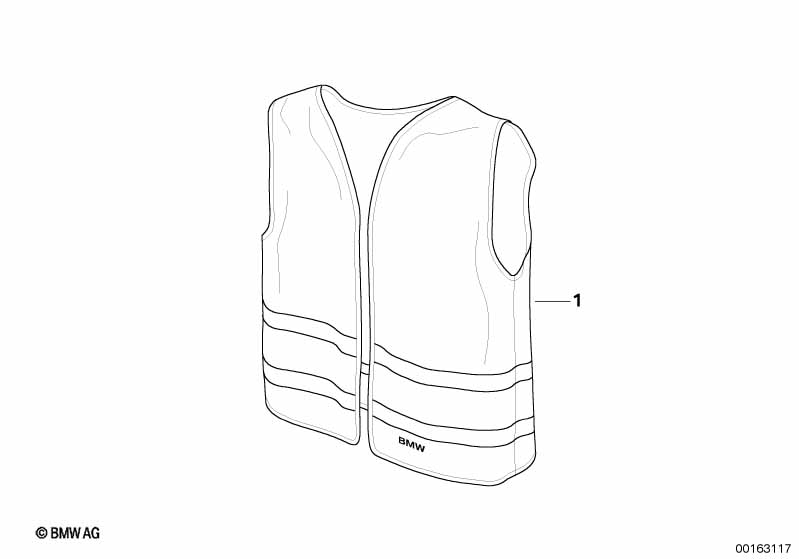

This Warning vest technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Warning vest | NEONGELB / BMW | 1 | 05/1999 | 82122147800 | ENDED | Shop at ECS Tuning | |||
| 01 | BMW warning vest, set of 2 | 1 | 05/1999 | 82262311350 | ENDED | Shop at ECS Tuning | ||||
| 01 | BMW warning vest, set of 2 | 1 | 82262288693 | Shop at ECS Tuning | ||||||
| 01 | Warning vest | NEONGELB / BMW | 1 | 82120398826 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850CSi Warning vest?
- This technical diagram illustrates the Warning vest within the Retrofitting / conversion / accessories group for the 8 Series E31 850CSi produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Warning vest (Part #82122147800).
- Which models use the hardware listed in this Warning vest?
- The hardware and components featured in the Warning vest are specific to the 8 Series E31 850CSi produced during 1996. These technical specifications ensure that parts like the Warning vest (82122147800) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Warning vest assembly?
- Each item in the Warning vest corresponds to the numbered list below the illustration. For the 8 Series E31 850CSi, you can identify the Warning vest by locating its position on the schematic, which then links to the official BMW part number 82122147800 for the Retrofitting / conversion / accessories section.
