3-point seat belt, rear for BMW 3 Series E46 325Ci (2006)

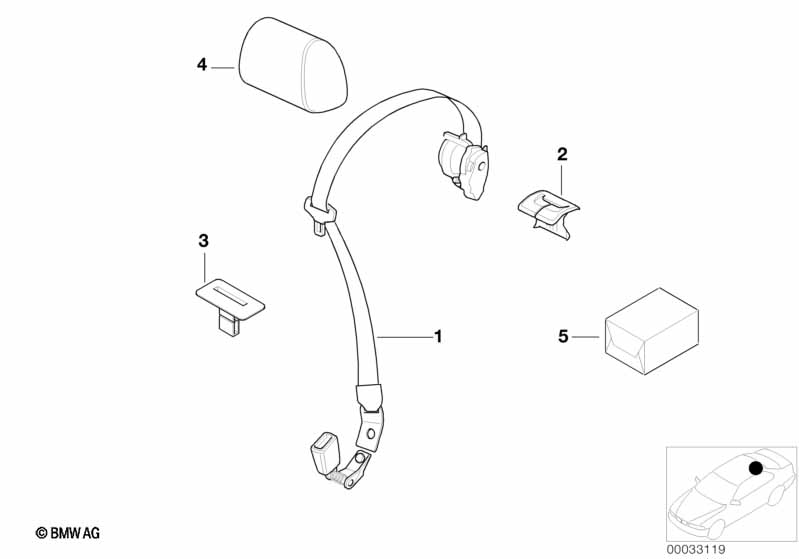

This 3-point seat belt, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | 3rd head restraint, rear seat, for vehicles from 06/00 (refer to HG 52) |
|||||||||
| 01 | Inst. kit, rear 3-point seat belt | 1 | 71119415195 | $108.95 | ENDED | Shop at ECS Tuning | ||||
| additionally required parts: Headrest with installation kit Cover and belt tongue housing |
||||||||||
| 02 | Cover, belt outlet | SCHWARZ | 1 | 51468213970 | $2.64 | Shop at ECS Tuning | ||||
| 02 | Cover, belt outlet | GRAU | 1 | 51468226502 | $2.64 | ENDED | Shop at ECS Tuning | |||
| 02 | Cover, belt outlet | MINTGRUEN | 1 | 51468226504 | $2.40 | Shop at ECS Tuning | ||||
| 02 | Cover, belt outlet | HELLBEIGE | 1 | 51468226505 | $2.64 | Shop at ECS Tuning | ||||
| 03 | Belt tongue housing | SCHWARZ | 1 | 72118250088 | $9.75 | ENDED | Shop at ECS Tuning | |||
| 03 | Belt tongue housing | GRAU | 1 | 72118250089 | $10.25 | ENDED | Shop at ECS Tuning | |||
| 03 | Belt tongue housing | MINTGRUEN | 1 | 72118250090 | $9.75 | ENDED | Shop at ECS Tuning | |||
| 03 | Belt tongue housing | HELLBEIGE 2 | 1 | 72118250091 | $10.25 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325Ci 3-point seat belt, rear?
- This technical diagram illustrates the 3-point seat belt, rear within the Retrofitting / conversion / accessories group for the 3 Series E46 325Ci produced during 2006. It provides a detailed exploded view of the components, identifying key parts such as the Inst. kit, rear 3-point seat belt (Part #71119415195).
- Which models use the hardware listed in this 3-point seat belt, rear?
- The hardware and components featured in the 3-point seat belt, rear are specific to the 3 Series E46 325Ci produced during 2006. These technical specifications ensure that parts like the Inst. kit, rear 3-point seat belt (71119415195) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the 3-point seat belt, rear assembly?
- Each item in the 3-point seat belt, rear corresponds to the numbered list below the illustration. For the 3 Series E46 325Ci, you can identify the Inst. kit, rear 3-point seat belt by locating its position on the schematic, which then links to the official BMW part number 71119415195 for the Retrofitting / conversion / accessories section.
