Breakdown equipment for BMW 5 Series E28 535i (1987)

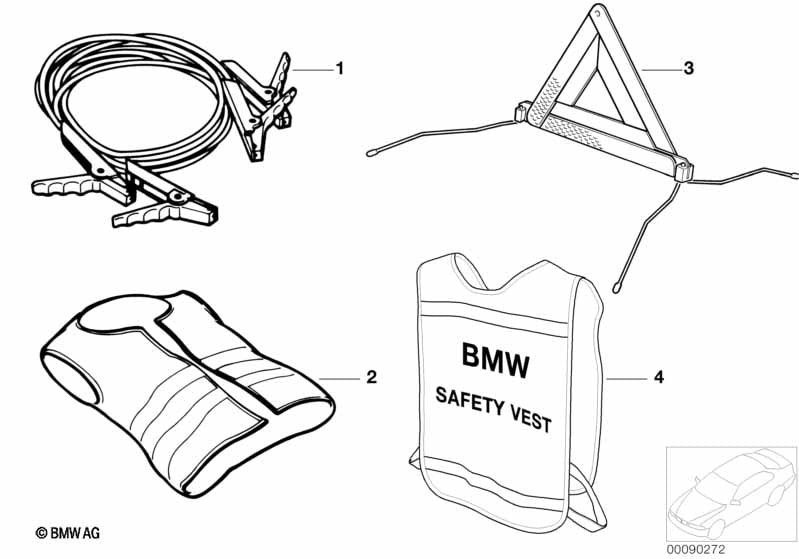

This Breakdown equipment technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jumper cable with safety circuit | STARTRONIC | 1 | 82119430094 | $84.00 | ENDED | Shop at ECS Tuning | |||
| 01 | Jumper cable with safety circuit | STARTRONIC | 1 | 83310153163 | $85.00 | ENDED | Shop at ECS Tuning | |||
| 02 | Warning vest | 1 | 82129406645 | ENDED | Shop at ECS Tuning | |||||
| 02 | Warning vest | NEONGELB / BMW | 1 | 06/1988 | 82120398826 | ENDED | Shop at ECS Tuning | |||
| 02 | Warning vest | NEONGELB / BMW | 1 | 06/1988 | 82122147800 | ENDED | Shop at ECS Tuning | |||
| 02 | BMW warning vest, set of 2 | 1 | 06/1988 | 82262311350 | ENDED | Shop at ECS Tuning | ||||
| 02 | BMW warning vest, set of 2 | 1 | 82262288693 | Shop at ECS Tuning | ||||||
| 03 | Warning triangle without container | 1 | 71601092428 | $23.16 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Warning triangle with container | 1 | 71601092427 | $19.53 | ENDED, +core | Shop at ECS Tuning | ||||
| 04 | Child safety jacket | 1 | 82190137620 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
