Storage compartment module for BMW 5 Series E60 525i (2005)

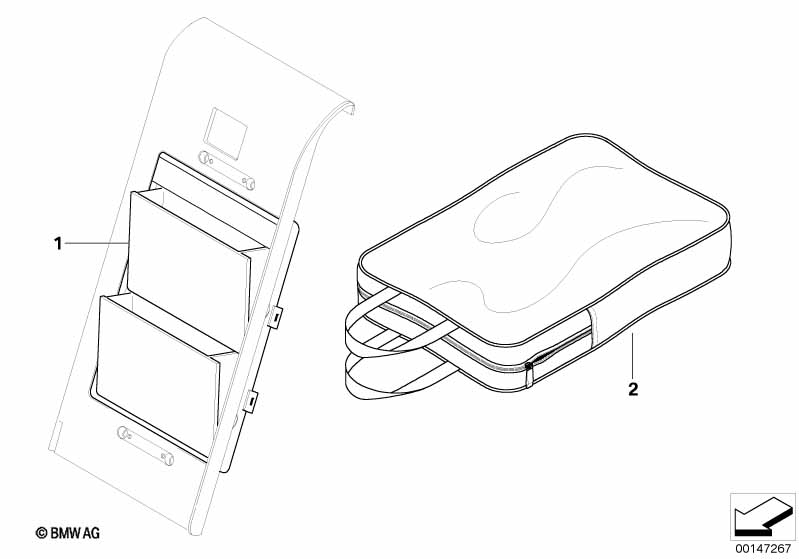

This Storage compartment module technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A module of the multifunctional module series +++++ For exchangeable frame of skibag module +++++ Replacement by customer. For vehicles with Ski bag or Through-loading system or Ski bag |
S464A=Yes S465A=Yes S468A=Yes |
||||||||

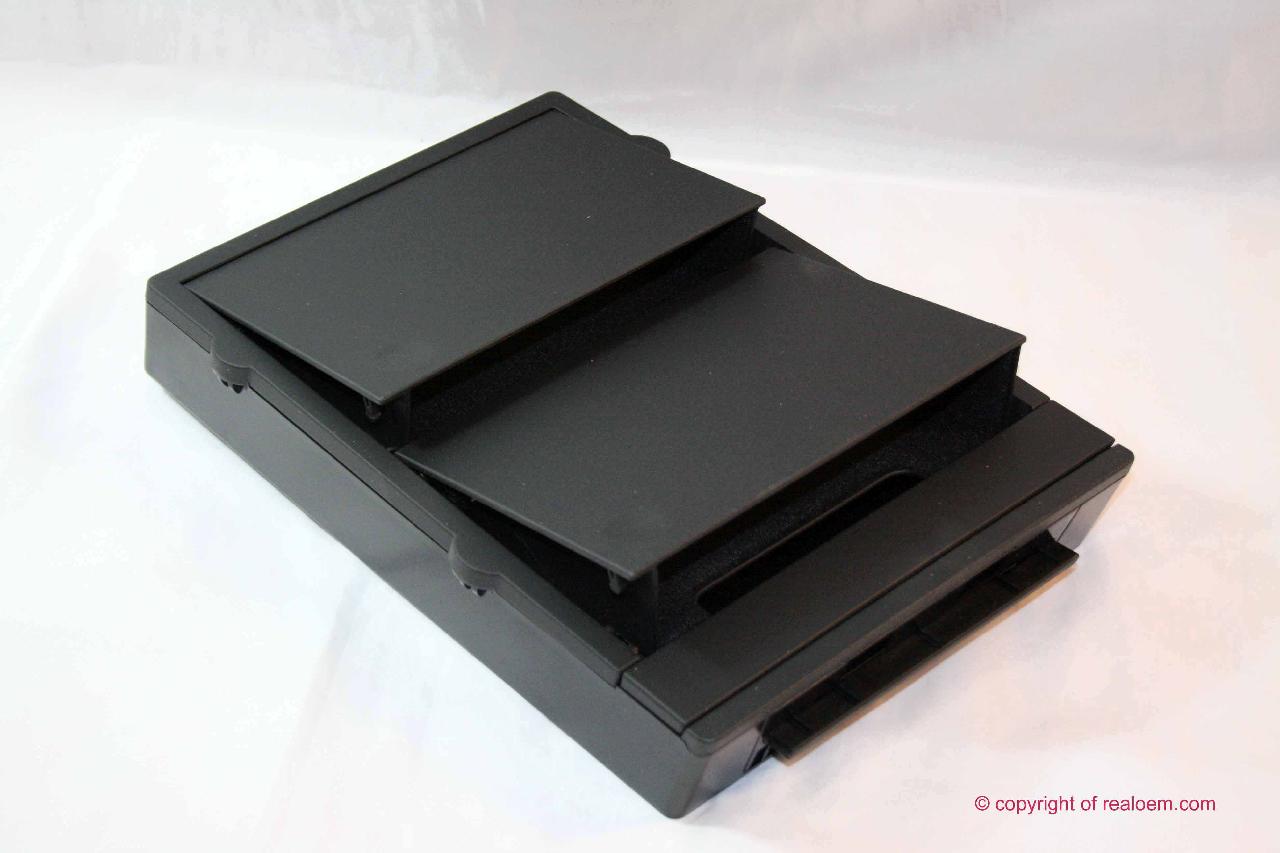

| 01 | Storage compartment module | 1 | 05/2004 | 72600153335 | $112.95 | ENDED | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Frame ski bag | SCHWARZ | X | 05/2004 | 52207160565 | $58.00 | Shop at ECS Tuning | |||
| 02 | Bag for multifunctional module | 1 | 72600406419 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
