Weapon safety device officials for BMW 5 Series E12 520 (1981)

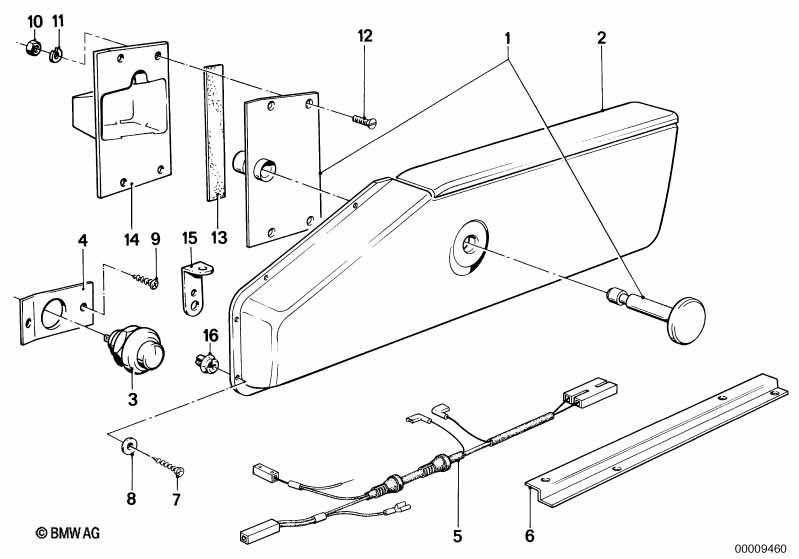

This Weapon safety device officials technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Weapon safety device right | 1 | 72161856234 | ENDED | Shop at ECS Tuning | |||||
| 03 | Pressure switch | 1 | 61311364936 | ENDED | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 61311856328 | ENDED | Shop at ECS Tuning | |||||
| 05 | Wiring set | 1 | 08/1978 | 61121366360 | ENDED | Shop at ECS Tuning | ||||
| 06 | Seat rail | 2 | 08/1979 | 52101877974 | ENDED | Shop at ECS Tuning | ||||
| 07 | Fillister head self-tapping screw | ST4,2X16-ABW | 8 | 07119906749 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Washer | 5 | 8 | 72161860997 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,2X9,5 | 2 | 07119901150 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 09 | Screw | 2 | 07119904170 | $0.17 | Shop at ECS Tuning | |||||
| 10 | Hex nut | M6 | 4 | 08/1996 | 23112322368 | $0.38 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex nut | M6-8-ZNS | 4 | 07119922832 | $0.37 | ENDED | Shop at ECS Tuning | |||
| 10 | Hex nut | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Countersunk head screw | M6X12 | 4 | 52101817063 | $0.92 | Shop at ECS Tuning | ||||
| 13 | Gasket | 2 | 72161884070 | ENDED | Shop at ECS Tuning | |||||
| 14 | Covering right | 1 | 72161886134 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
