Cup holder-module for BMW 7 Series F02 730Li (2012)

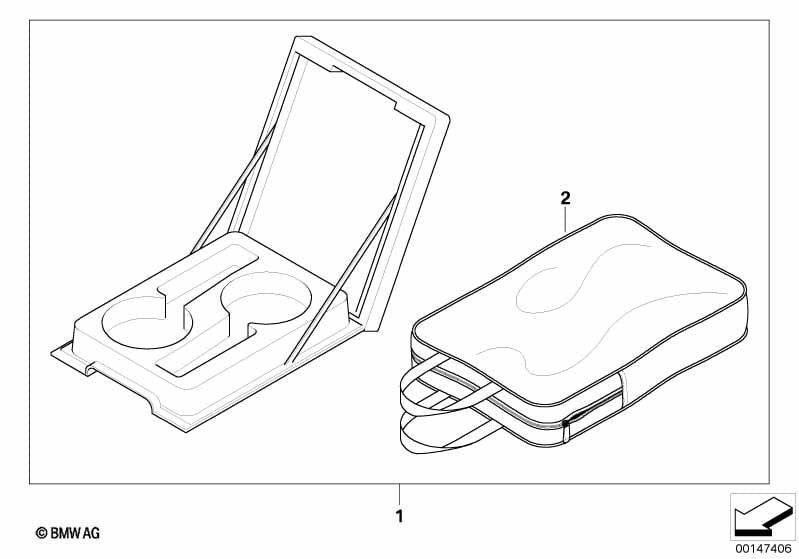

This Cup holder-module technical drawing provides a detailed breakdown of the assembly for the 7 Series F02 730Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | A module of the multifunctional module series +++++ For vehicles with SA through-load +++++ Replacement by customer. For vehicles with Ski bag or Through-loading system or Ski bag |
S464A=Yes S465A=Yes S468A=Yes |
||||||||
| 01 | Cup holder-module | 1 | 72600153336 | $147.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bag for multifunctional module | 1 | 72600406419 | ENDED | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series F02 730Li Cup holder-module?
- This technical diagram illustrates the Cup holder-module within the Retrofitting / conversion / accessories group for the 7 Series F02 730Li produced during 2012. It provides a detailed exploded view of the components, identifying key parts such as the Cup holder-module (Part #72600153336).
- Which models use the hardware listed in this Cup holder-module?
- The hardware and components featured in the Cup holder-module are specific to the 7 Series F02 730Li produced during 2012. These technical specifications ensure that parts like the Cup holder-module (72600153336) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cup holder-module assembly?
- Each item in the Cup holder-module corresponds to the numbered list below the illustration. For the 7 Series F02 730Li, you can identify the Cup holder-module by locating its position on the schematic, which then links to the official BMW part number 72600153336 for the Retrofitting / conversion / accessories section.
